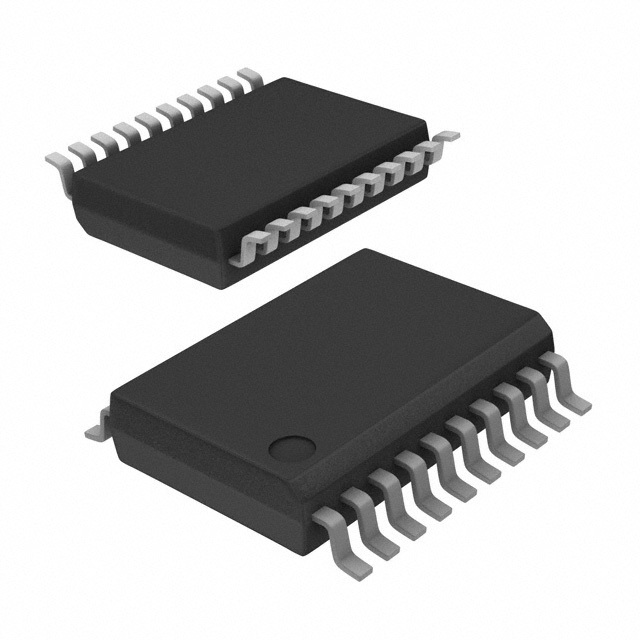

BH2221FV-E2

SKU: 32234

Manufacturer: ROHM Semiconductor

DAC 12-CH R-2R 8-bit 20-Pin SSOP-B T/R

1250 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Converter Type	General Purpose
Architecture	R-2R
Resolution	8bit
Number of DAC Channels	12
Number of Outputs per Chip	12
Maximum Settling Time (us)	100
Digital Interface Type	Serial (3-Wire)
Output Type	Voltage
Output Polarity	Unipolar
Minimum Single Supply Voltage (V)	2.7
Typical Single Supply Voltage (V)	3
Maximum Single Supply Voltage (V)	5.5
Power Supply Type	Single
Maximum Power Dissipation (mW)	650
Integral Nonlinearity Error	±1.5LSB
Digital Supply Support	No
Operating Temperature-Min	-20
Operating Temperature-Max	85
Packing Method	Tape and Reel
Original Package	SSOP-B
Pin Count	20
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	1.05
Package Length	6.5
Package Width	4.4
PCB changed	20
