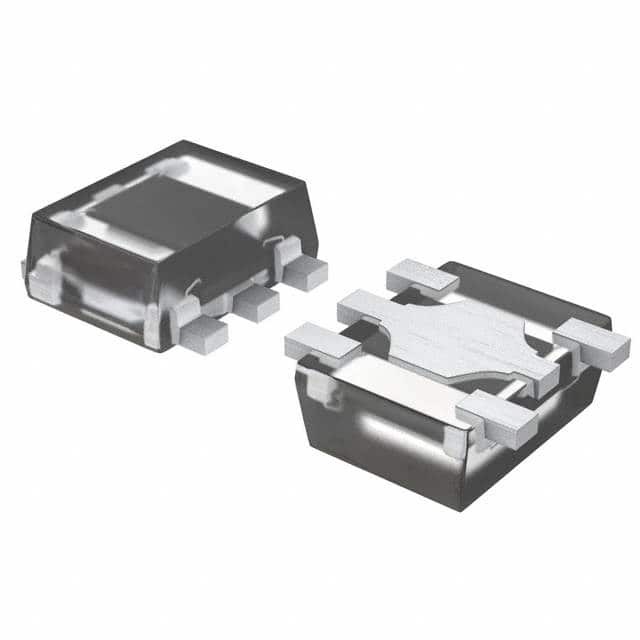

BH1721FVC-TR

SKU: 53654

Manufacturer: ROHM Semiconductor

Light to Digital Ambient Light Sensor Digital 3V 5-Pin WSOF T/R

67350 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Sensor Type	Light to Digital
Lux Range (lux)	1 to 65528
Peak Wavelength (nm)	560
Maximum Clock Frequency (kHz)	400
Interface Type	Serial (I2C)
Output Type	Digital
Operating Supply Voltage-Min (V)	2.4
Typical Operating Supply Voltage (V)	3
Operating Supply Voltage-Max (V)	3.6
Typical Supply Current (uA)	140
Maximum Power Dissipation (mW)	165
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Original Package	WSOF
Pin Count	5
Standard Package Method	WSOF
Terminal Form	Surface Mount
Package Height	0.55(Max)
Package Length	1.6
Package Width	1.2
