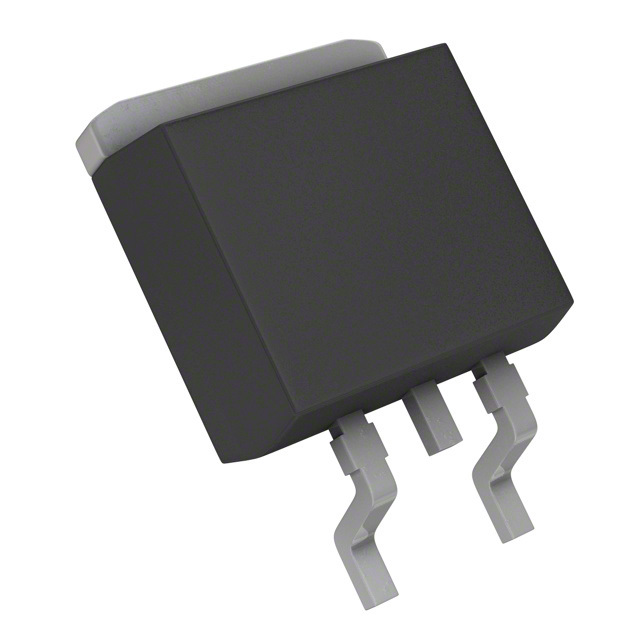

2SB1184TL-R

SKU: 9971

Manufacturer: ROHM Semiconductor

Trans GP BJT PNP 50V 3A 3-Pin(2+Tab) CPT T/R

1420 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Unconfirmed
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	PNP
Product Category	Bipolar Power
Body Material	Si
Configuration	Single
Number of Elements per pcs	1
Collector Base Voltage-Max (V)	60
Collector-Emitter Voltage-Max (V)	50
Maximum Emitter Base Voltage (V)	5
Maximum Collector-Emitter Saturation Voltage (V)	1@0.2A@2A
Maximum DC Collector Current (A)	3
Minimum DC Current Gain	180@0.5A@3V
Maximum Power Dissipation (mW)	1000
Maximum Transition Frequency (MHz)	70(Typ)
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Original Package	CPT
Pin Count	3
Standard Package Method	TO-252
Terminal Form	Surface Mount
Package Height	2.3
Package Length	6.5
Package Width	5.5
PCB changed	2
Tab	Tab
