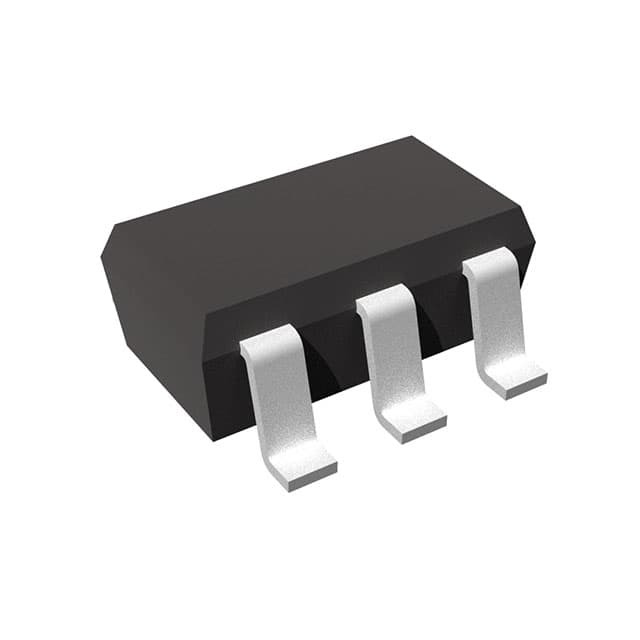

RP401N551C-TR-FE

SKU: 45132

Manufacturer: Ricoh Electronic Devices Company

Conv DC-DC 0.6V to 5.5V Step Up Single-Out 5.5V 0.5A 5-Pin SOT-23 T/R

1450 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Type	Step Up
Output Type	Fixed
Switching Frequency (kHz)	1380
Switching Regulator	Yes
Number of Outputs	1
Output Voltage (V)	5.5
Maximum Output Current (A)	0.5
Minimum Input Voltage (V)	0.6
Maximum Input Voltage (V)	5.5
Operating Supply Voltage (V)	0.6 to 5.5
Typical Switch Current (A)	1
Typical Quiescent Current (uA)	130
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Original Package	SOT-23
Pin Count	5
Standard Package Method	SOT-23
Terminal Form	Surface Mount
Package Height	1.1
Package Length	2.9
Package Width	1.6
PCB changed	5
