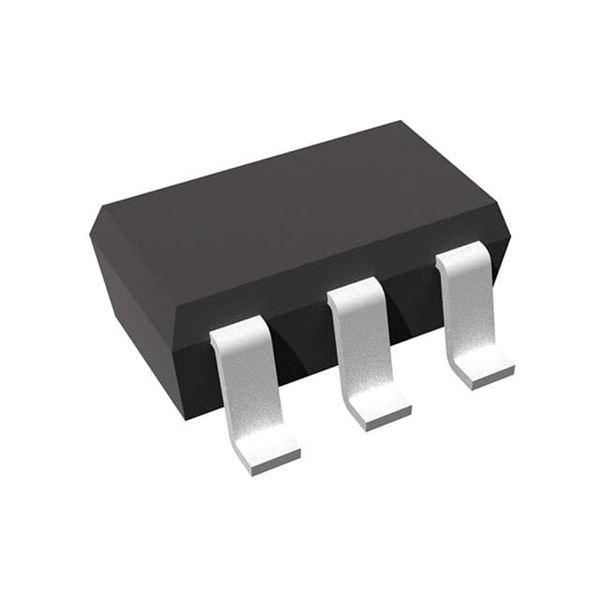

RP154N021B-TR-FE

SKU: 45131

Manufacturer: Ricoh Electronic Devices Company

LDO Regulator Pos 1.2V 0.3A 6-Pin SOT-23 T/R

3980 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Type	LDO
Number of Outputs	1
Polarity	Positive
Output Type	Fixed
Output Voltage (V)	1.2
Maximum Output Current (A)	0.3(Min)
Minimum Input Voltage (V)	1.4
Maximum Input Voltage (V)	5.25
Maximum Dropout Voltage @ Current (V)	0.52@300mA
Line Regulation	0.02%/V(Typ)
Load Regulation	15mV(Typ)
Maximum Power Dissipation (mW)	830
Junction to Ambient	150°C/W
Special Features	Shutdown
Operating Temperature-Min	-40
Operating Temperature-Max	105
Packing Method	Tape and Reel
Original Package	SOT-23
Pin Count	6
Standard Package Method	SOT-23
Terminal Form	Surface Mount
Package Height	1.1
Package Length	2.9
Package Width	1.6
PCB changed	6
