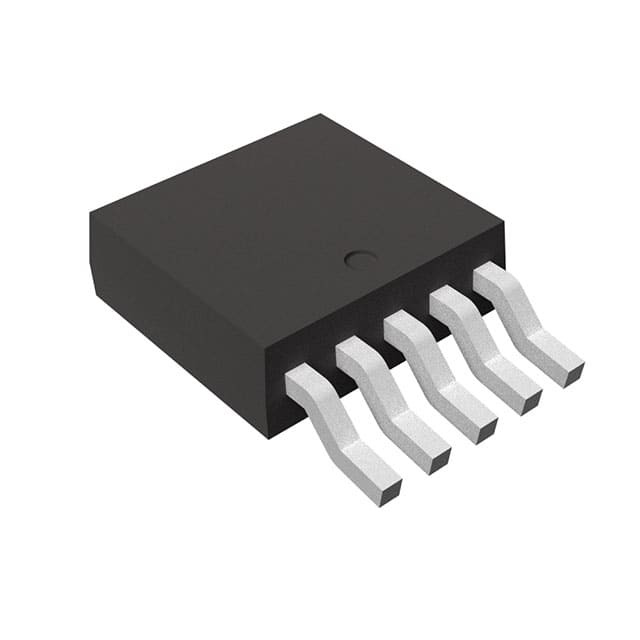

RP131J331D-T1-FE

SKU: 49628

Manufacturer: Ricoh Electronic Devices Company

LDO Regulator Pos 3.3V 1A 6-Pin(5+Tab) TO-252-P2 T/R

2830 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Type	LDO
Number of Outputs	1
Polarity	Positive
Accuracy (%)	±1
Output Type	Fixed
Output Voltage (V)	3.3
Maximum Output Current (A)	1(Min)
Minimum Input Voltage (V)	1.6
Maximum Input Voltage (V)	6.5
Maximum Dropout Voltage @ Current (V)	0.17@300mA
Line Regulation	0.05%/V(Typ)
Load Regulation	80mV(Typ)
Maximum Power Dissipation (mW)	3800
Junction to Ambient	26°C/W
Special Features	Current Foldback Protection
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Original Package	TO-252-P2
Pin Count	6
Standard Package Method	TO-252
Terminal Form	Surface Mount
Package Height	2.3
Package Length	6.6
Package Width	6.2
PCB changed	5
Tab	Tab
