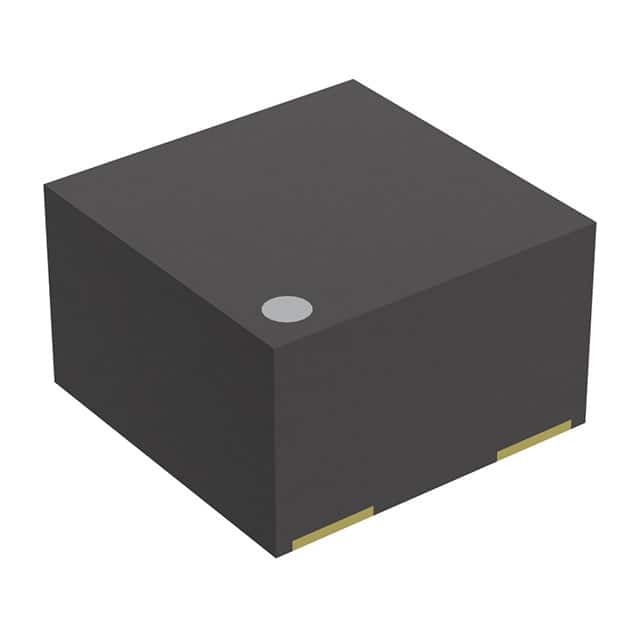

RP130K481D-TR

SKU: 84846

Manufacturer: Ricoh Electronic Devices Company

LDO Regulator Pos 4.8V 0.15A Automotive 4-Pin DFN EP T/R

1920 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	Yes
PPAP	Unknown
Type	LDO
Number of Outputs	1
Polarity	Positive
Accuracy (%)	±1
Output Type	Fixed
Output Voltage (V)	4.8
Maximum Output Current (A)	0.15(Min)
Minimum Input Voltage (V)	1.7
Maximum Input Voltage (V)	6.5
Maximum Dropout Voltage @ Current (V)	0.37@150mA
Line Regulation	0.02%/V(Typ)
Load Regulation	10mV(Typ)
Maximum Power Dissipation (mW)	400
Special Features	Current Limit
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Original Package	DFN EP
Pin Count	4
Standard Package Method	DFN
Terminal Form	Surface Mount
Package Height	0.6(Max)
Package Length	1
Package Width	1
PCB changed	4
