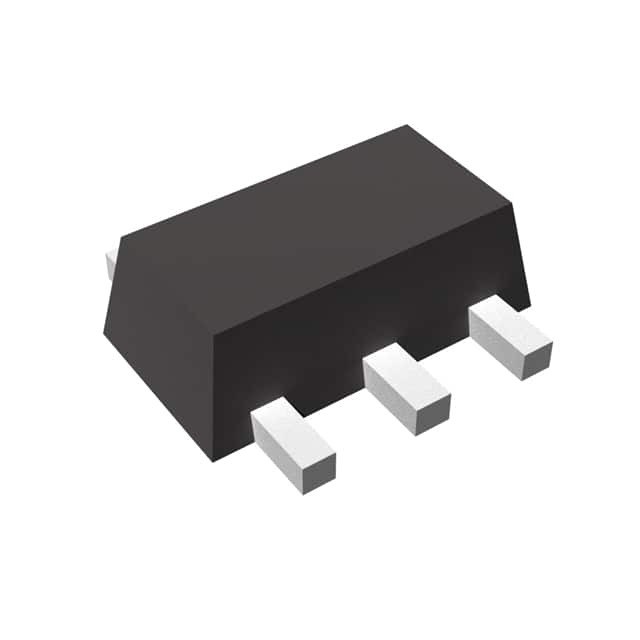

RP111H331D-T1-FE

SKU: 14134

Manufacturer: Ricoh Electronic Devices Company

LDO Regulator Pos 3.3V 0.5A 6-Pin(5+Tab) SOT-89 T/R

36040 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Unconfirmed
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	LDO
Number of Outputs	1
Polarity	Positive
Accuracy (%)	±0.8
Output Type	Fixed
Output Voltage (V)	3.3
Maximum Output Current (A)	0.5(Min)
Minimum Input Voltage (V)	1.4
Maximum Input Voltage (V)	5.25
Maximum Dropout Voltage @ Current (V)	0.32@500mA
Line Regulation	0.02%/V(Typ)
Load Regulation	1mV(Typ)
Maximum Power Dissipation (mW)	900
Junction to Ambient	111°C/W
Special Features	Current Foldback Protection
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Original Package	SOT-89
Pin Count	6
Terminal Form	Surface Mount
Package Height	1.5
Package Length	4.5
Package Width	2.5
PCB changed	5
