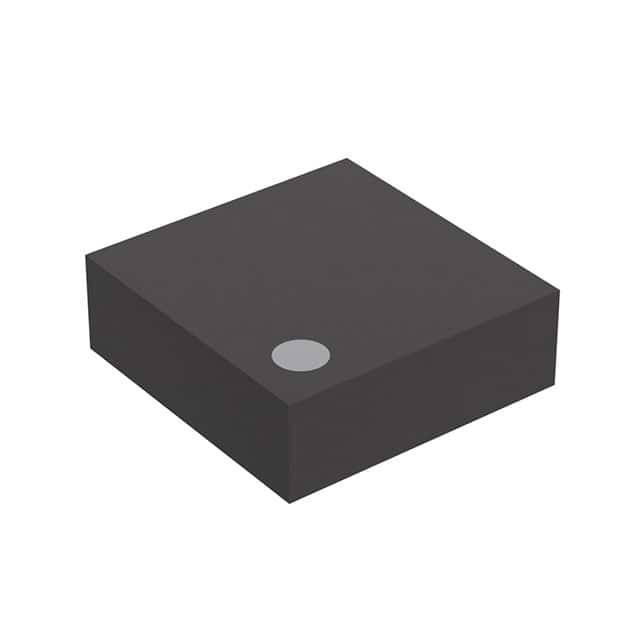

RP106K111D-TR

SKU: 35327

Manufacturer: Ricoh Electronic Devices Company

LDO Regulator Pos 1.1V 0.4A 6-Pin DFN T/R

3250 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Type	LDO
Number of Outputs	1
Polarity	Positive
Accuracy (%)	±0.8
Output Type	Fixed
Output Voltage (V)	1.1
Maximum Output Current (A)	0.4(Min)
Minimum Input Voltage (V)	1
Maximum Input Voltage (V)	3.6
Maximum Dropout Voltage @ Current (V)	0.45@400mA
Line Regulation	0.1%/V(Typ)
Load Regulation	25mV(Typ)
Maximum Power Dissipation (mW)	400
Junction to Ambient	250°C/W
Special Features	Enable Control
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Original Package	DFN
Pin Count	6
Standard Package Method	DFN
Terminal Form	Surface Mount
Package Height	0.4(Max)
Package Length	1.2
Package Width	1.2
PCB changed	6
