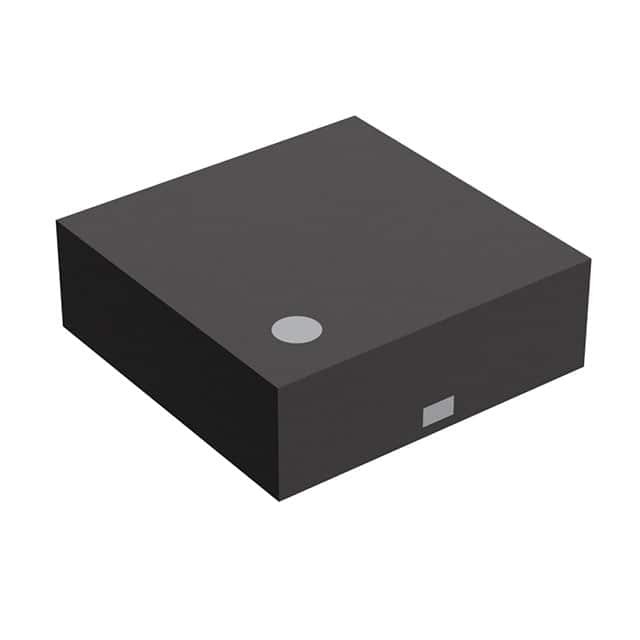

RP105L091F-TR

SKU: 101567

Manufacturer: Ricoh Electronic Devices Company

LDO Regulator Pos 0.9V 0.4A 4-Pin DFN EP T/R

1740 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Unconfirmed
Automotive	No
PPAP	No
Type	LDO
Number of Outputs	1
Polarity	Positive
Output Type	Fixed
Output Voltage (V)	0.9
Maximum Output Current (A)	0.4(Min)
Minimum Input Voltage (V)	2.5
Maximum Input Voltage (V)	5.25
Maximum Dropout Voltage @ Current (V)	0.17@400mA
Line Regulation	0.02%/V(Typ)
Load Regulation	15mV(Typ)
Maximum Power Dissipation (mW)	560
Junction to Ambient	178°C/W
Special Features	Under Voltage Lockout
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Original Package	DFN EP
Pin Count	4
Terminal Form	Surface Mount
Package Height	0.4(Max)
Package Length	1.2
Package Width	1.2
