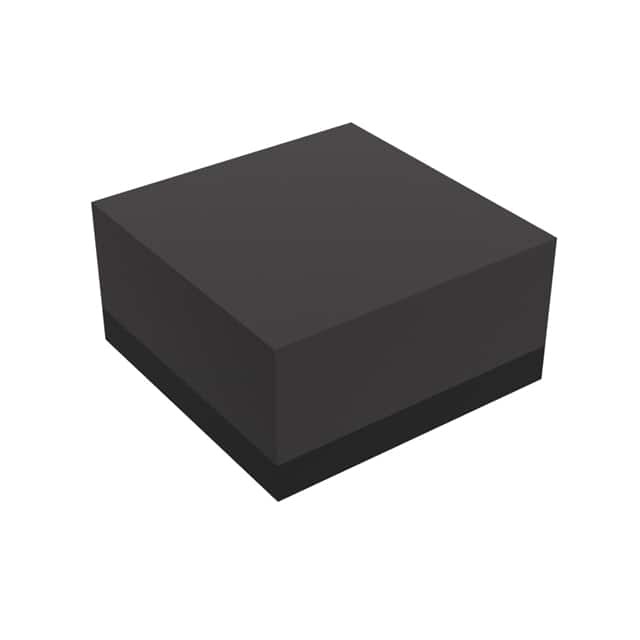

RP102Z121D-TR-F

SKU: 141552

Manufacturer: Ricoh Electronic Devices Company

LDO Regulator Pos 1.2V 0.3A 4-Pin WLCSP-P2 T/R

1080 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Type	LDO
Number of Outputs	1
Polarity	Positive
Accuracy (%)	±0.8
Output Type	Fixed
Output Voltage (V)	1.2
Maximum Output Current (A)	0.3(Min)
Minimum Input Voltage (V)	1.7
Maximum Input Voltage (V)	5.25
Maximum Dropout Voltage @ Current (V)	0.5@300mA
Line Regulation	0.01%/V
Load Regulation	40mV
Maximum Power Dissipation (mW)	530
Junction to Ambient	189°C/W
Special Features	Current Foldback Protection
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Original Package	WLCSP-P2
Pin Count	4
Standard Package Method	BGA
Terminal Form	Surface Mount
Package Height	0.4
Package Length	0.79
Package Width	0.79
PCB changed	4
