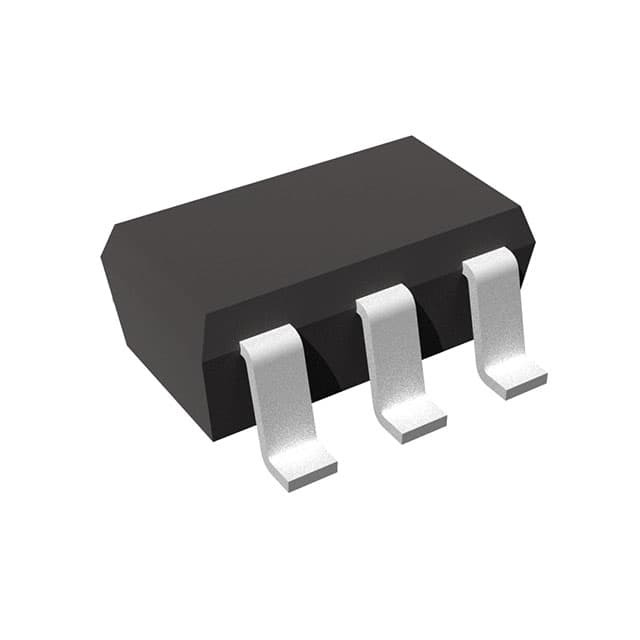

RN5VD40CA-TR-FE

SKU: 144119

Manufacturer: Ricoh Electronic Devices Company

Processor Supervisor 4V 1 Active Low/CMOS 5-Pin SOT-23 T/R

2830 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Number of Supervisors	1
Output Driver	Active Low/CMOS
Minimum Reset Threshold Voltage (V)	3.9
Typical Reset Threshold Voltage (V)	4
Maximum Reset Threshold Voltage (V)	4.1
Operating Supply Voltage-Min (V)	0.7
Operating Supply Voltage-Max (V)	10
Maximum Supply Current (uA)	10
Maximum Power Dissipation (mW)	420
Power Fail Detection	Yes
Watchdog Timer	No
Manual Reset	No
Chip Enable Signals	No
Battery Backup Switching	Yes
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Type	Voltage Detector
Original Package	SOT-23
Pin Count	5
Standard Package Method	SOT-23
Terminal Form	Surface Mount
Package Height	1.1
Package Length	2.9
Package Width	1.6
PCB changed	5
