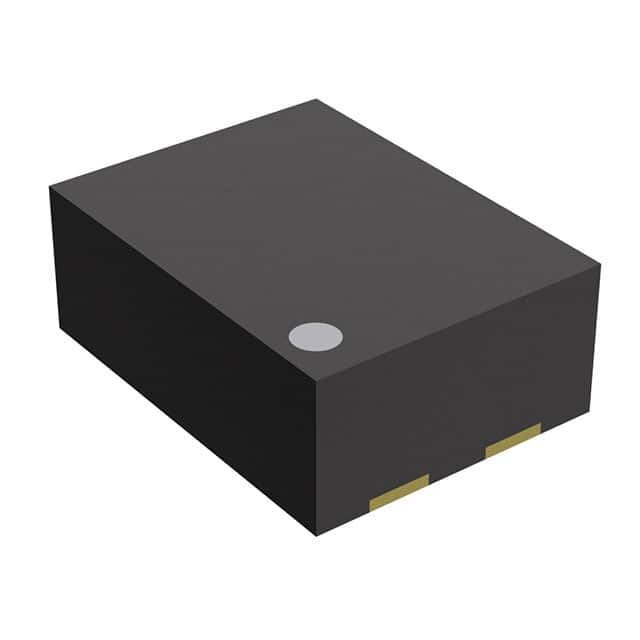

R5527K001D-TR

SKU: 70676

Manufacturer: Ricoh Electronic Devices Company

Power Switch Hi Side 1-OUT 3A 0.068Ohm 4-Pin DFN EP T/R

2320 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Type	High Side
Number of Outputs	1
Minimum Input Voltage (V)	1.8
Maximum Input Voltage (V)	5.5
Output Voltage Range (V)	-0.3 to 6
Operating Supply Voltage Range (V)	1.8 to 5.5
Minimum Output Current (A)	3(Max)
Supply Current (mA)	0.04
Switch On Resistance (Ohm)	0.068
Maximum Power Dissipation (mW)	610
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Original Package	DFN EP
Pin Count	4
Standard Package Method	DFN
Terminal Form	Surface Mount
Package Height	0.6(Max)
Package Length	1.2
Package Width	1.6
PCB changed	4
