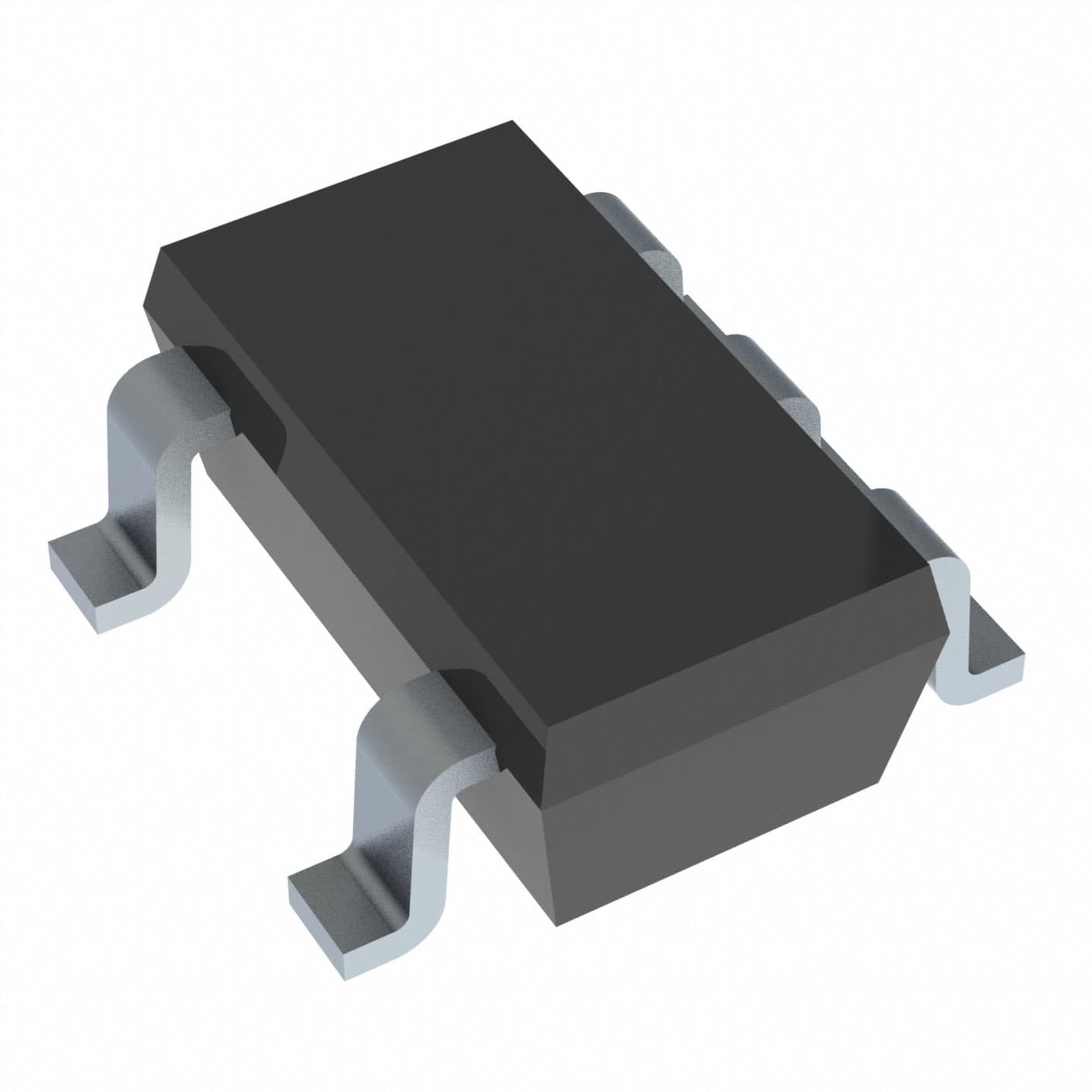

R5523N001A-TR-FE

SKU: 87406

Manufacturer: Ricoh Electronic Devices Company

Hi Side Single 5.5V 0.75A Automotive 5-Pin SOT-23 T/R

1130 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	Unknown
PPAP	Unknown
Type	USB High Side Power Switch
Number of Switches	1
Current Limit (A)	0.75
Enable Logic	Active Low
Minimum Input Voltage (V)	2.2
Maximum Input Voltage (V)	5.5
Maximum Power Dissipation (mW)	420
Switch On Resistance (mOhm)	130
Typical UVLO Threshold (V)	1.9
Operating Temperature-Min	-40
Operating Temperature-Max	85
Typical Turn-On Delay Time (us)	1400
Typical Turn-Off Delay Time (us)	5
Packing Method	Tape and Reel
Original Package	SOT-23
Pin Count	5
Standard Package Method	SOT-23
Terminal Form	Surface Mount
Package Height	1.1
Package Length	2.9
Package Width	1.6
PCB changed	5
