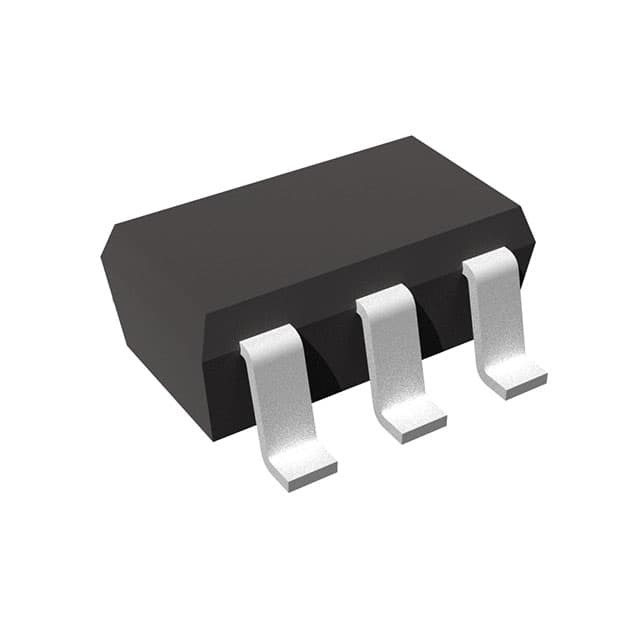

R3112N301C-TR-FE

SKU: 108557

Manufacturer: Ricoh Electronic Devices Company

Processor Supervisor 3V 1 CMOS 5-Pin SOT-23 T/R

2520 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Number of Supervisors	1
Output Driver	CMOS
Minimum Reset Threshold Voltage (V)	2.94
Typical Reset Threshold Voltage (V)	3
Maximum Reset Threshold Voltage (V)	3.06
Operating Supply Voltage-Min (V)	0.7
Operating Supply Voltage-Max (V)	6
Maximum Supply Current (uA)	3
Maximum Power Dissipation (mW)	420
Power Fail Detection	Yes
Watchdog Timer	No
Manual Reset	No
Chip Enable Signals	No
Battery Backup Switching	Yes
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Type	Voltage Detector
Original Package	SOT-23
Pin Count	5
Standard Package Method	SOT-23
Terminal Form	Surface Mount
Package Height	1.1
Package Length	2.9
Package Width	1.6
PCB changed	5
