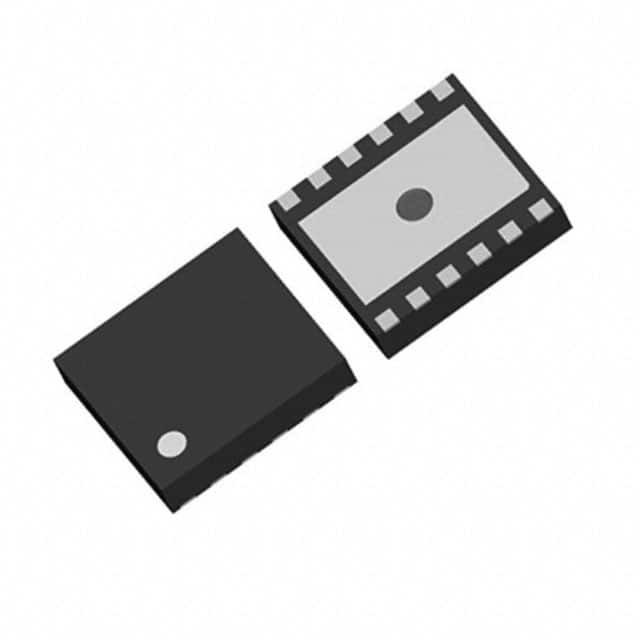

R1213K001A-TR Ricoh Electronic Devices Company

R1213K001A-TR

SKU: 108556

Manufacturer: Ricoh Electronic Devices Company

Conv DC-DC 2.3V to 5.5V Step Up Single-Out 3V to 6V 2.5A 12-Pin DFN EP T/R

Request Free Samples

2880 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Automotive	No
PPAP	No
Type	Step Up
Output Type	Adjustable
Switching Frequency (kHz)	1150
Switching Regulator	Yes
Number of Outputs	1
Output Voltage (V)	3 to 6
Maximum Output Current (A)	2.5
Minimum Input Voltage (V)	2.3
Maximum Input Voltage (V)	5.5
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Original Package	DFN EP
Pin Count	12
Terminal Form	Surface Mount
Package Height	0.6(Max)
Package Length	3
Package Width	2.7
