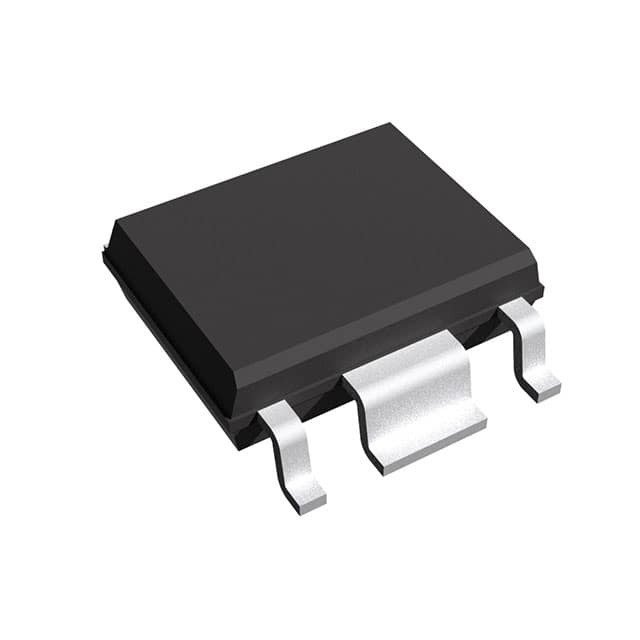

R1171S181B-E2-FE

SKU: 101531

Manufacturer: Ricoh Electronic Devices Company

LDO Regulator Pos 1.8V 1.5A 6-Pin HSOP-J T/R

2000 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Type	LDO
Number of Outputs	1
Polarity	Positive
Accuracy (%)	±2
Output Type	Fixed
Output Voltage (V)	1.8
Maximum Output Current (A)	1.5(Min)
Minimum Input Voltage (V)	2.1
Maximum Input Voltage (V)	6
Maximum Dropout Voltage @ Current (V)	0.24@300mA
Line Regulation	0.3%/V
Load Regulation	60mV
Maximum Power Dissipation (mW)	1700
Special Features	Current Limit
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Original Package	HSOP-J
Pin Count	6
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	1.5
Package Length	5.02
Package Width	3.9
PCB changed	6
