R1130H331B-T1-FE

SKU: 52248

Manufacturer: Ricoh Electronic Devices Company

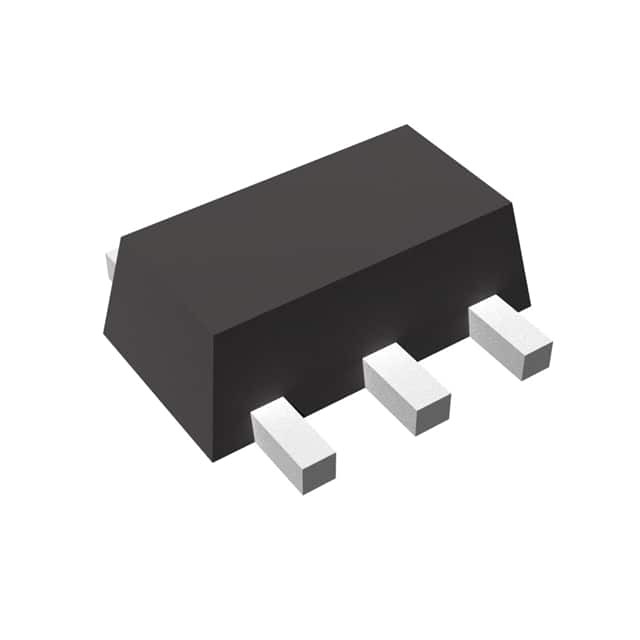

LDO Regulator Pos 3.3V 0.3A 6-Pin(5+Tab) SOT-89 T/R

3560 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Type	LDO
Number of Outputs	1
Polarity	Positive
Accuracy (%)	±2
Output Type	Fixed
Output Voltage (V)	3.3
Maximum Output Current (A)	0.3(Min)
Minimum Input Voltage (V)	2.5
Maximum Input Voltage (V)	8
Maximum Dropout Voltage @ Current (V)	0.34@100mA
Line Regulation	0.2%/V
Load Regulation	80mV
Maximum Power Dissipation (mW)	900
Special Features	Current Limit
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Original Package	SOT-89
Pin Count	6
Standard Package Method	SOT-89
Terminal Form	Surface Mount
Package Height	1.5
Package Length	4.5
Package Width	2.5
PCB changed	5
Tab	Tab
