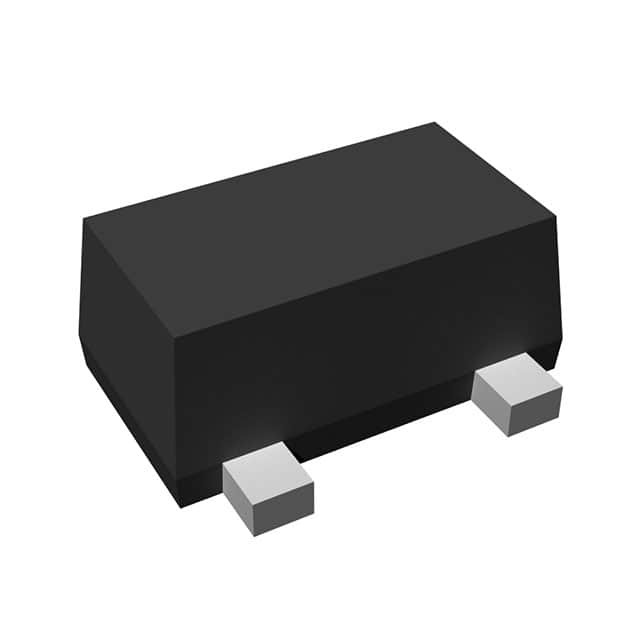

R1100D121C

SKU: 59346

Manufacturer: Ricoh Electronic Devices Company

LDO Regulator Pos 1.2V 0.035A 3-Pin SON T/R

1120 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Unconfirmed
Automotive	No
PPAP	No
Type	LDO
Number of Outputs	1
Polarity	Positive
Accuracy (%)	±2
Output Type	Fixed
Output Voltage (V)	1.2
Maximum Output Current (A)	0.035(Min)
Minimum Input Voltage (V)	1.2
Maximum Input Voltage (V)	6
Maximum Dropout Voltage @ Current (V)	0.6@1mA
Line Regulation	0.2%/V
Load Regulation	20mV
Maximum Power Dissipation (mW)	250
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Original Package	SON
Pin Count	3
Standard Package Method	SON
Terminal Form	Surface Mount
Package Height	0.6(Max)
Package Length	1.4
Package Width	0.8
PCB changed	3
