RT9179GB

SKU: 42473

Manufacturer: Richtek Technology Corporation

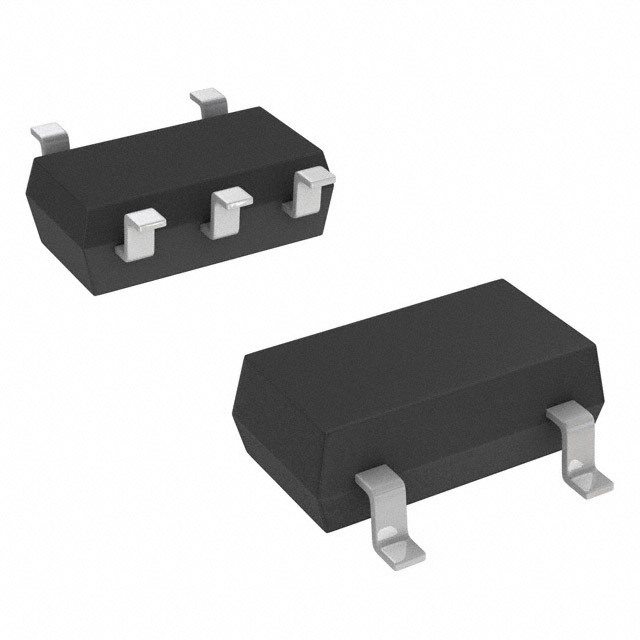

LDO Regulator Pos 1.175V to 4.5V 0.3A 5-Pin SOT-23

69950 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Type	LDO
Number of Outputs	1
Polarity	Positive
Output Type	Adjustable
Output Voltage (V)	1.175 to 4.5
Maximum Output Current (A)	0.3
Minimum Input Voltage (V)	3
Maximum Input Voltage (V)	5.5
Reference Voltage (V)	1.187
Line Regulation	0.001%/V(Typ)
Maximum Power Dissipation (mW)	400
Junction to Ambient	250°C/W
Special Features	Current Limit
Operating Temperature-Min	-40
Operating Temperature-Max	125
Original Package	SOT-23
Pin Count	5
Standard Package Method	SOT-23
Terminal Form	Surface Mount
Package Height	1.14(Max)
Package Length	3.1(Max)
Package Width	1.8(Max)
PCB changed	5
