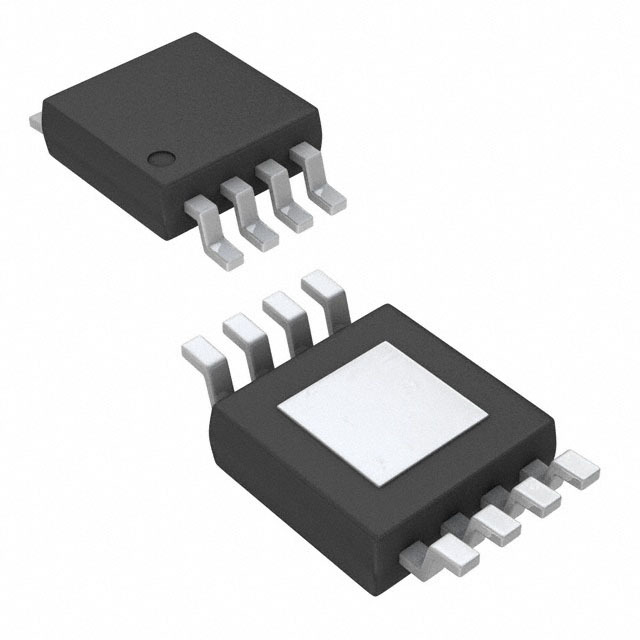

RT9042-25GSP

SKU: 106041

Manufacturer: Richtek Technology Corporation

LDO Regulator Pos 2.5V 3A 8-Pin PSOP EP

4830 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	NRND
Automotive	No
PPAP	No
Type	LDO
Number of Outputs	1
Polarity	Positive
Accuracy (%)	±2
Output Type	Fixed
Output Voltage (V)	2.5
Maximum Output Current (A)	3
Minimum Input Voltage (V)	1.4
Maximum Input Voltage (V)	5
Maximum Dropout Voltage @ Current (V)	0.3@2A
Reference Voltage (V)	0.812
Line Regulation	0.6%
Load Regulation	1%
Maximum Quiescent Current (mA)	1.2
Maximum Power Dissipation (mW)	1333
Junction to Ambient	75°C/W
Junction to Case	15°C/W
Special Features	Current Limit
Operating Temperature-Min	-40
Operating Temperature-Max	85
Original Package	PSOP EP
Pin Count	8
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	1.6(Max)
Package Length	5(Max)
Package Width	4(Max)
PCB changed	8
