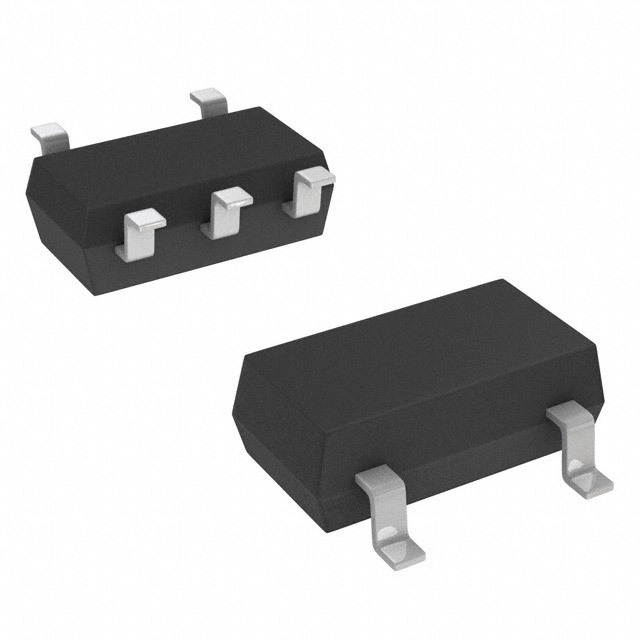

RT9013-18GB

SKU: 70750

Manufacturer: Richtek Technology Corporation

LDO Regulator Pos 1.8V 0.5A 5-Pin SOT-23

123140 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Type	LDO
Number of Outputs	1
Polarity	Positive
Accuracy (%)	±2
Output Type	Fixed
Output Voltage (V)	1.8
Maximum Output Current (A)	0.5
Minimum Input Voltage (V)	2.2
Maximum Input Voltage (V)	5.5
Maximum Dropout Voltage @ Current (V)	0.4@500mA
Line Regulation	0.2%/V
Load Regulation	1%
Maximum Quiescent Current (mA)	0.05
Maximum Power Dissipation (mW)	400
Junction to Ambient	250°C/W
Junction to Case	25°C/W
Special Features	Thermal Shutdown Protection
Operating Temperature-Min	-40
Operating Temperature-Max	85
Original Package	SOT-23
Pin Count	5
Standard Package Method	SOT-23
Terminal Form	Surface Mount
Package Height	1.14(Max)
Package Length	3.1(Max)
Package Width	1.8(Max)
PCB changed	5
