RT8070ZSP

SKU: 91868

Manufacturer: Richtek Technology Corporation

Conv DC-DC 2.7V to 5.5V Synchronous Step Down Single-Out 0.8V to 5V 4A 8-Pin PSOP EP

1830 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	Synchronous Step Down
Output Type	Adjustable
Switching Frequency (kHz)	200 to 2000
Switching Regulator	Yes
Number of Outputs	1
Output Voltage (V)	0.8 to 5
Maximum Output Current (A)	4
Minimum Input Voltage (V)	2.7
Maximum Input Voltage (V)	5.5
Operating Supply Voltage (V)	2.7 to 5.5
Line Regulation	0.1%/V(Typ)
Load Regulation	0.25%(Typ)
Efficiency (%)	95
Maximum ESD Protection Voltage (kV)	2@HBM
Operating Temperature-Min	-40
Operating Temperature-Max	85

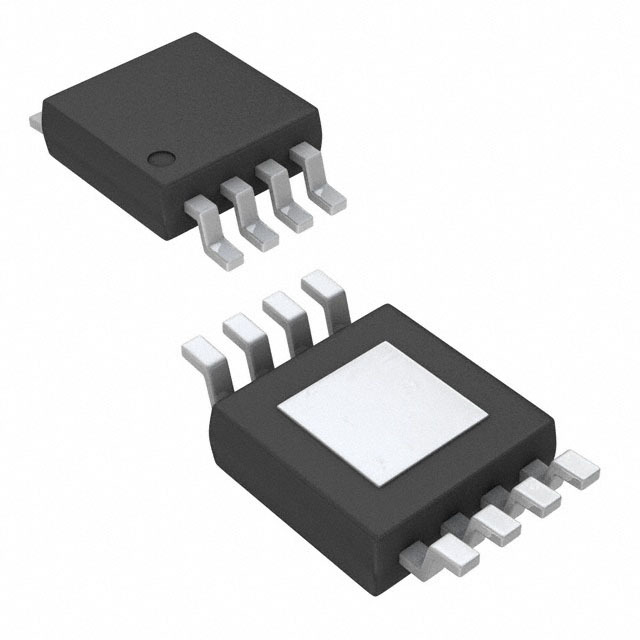

Original Package	PSOP EP
Pin Count	8
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	1.6(Max)
Package Length	5(Max)
Package Width	4(Max)
PCB changed	8
