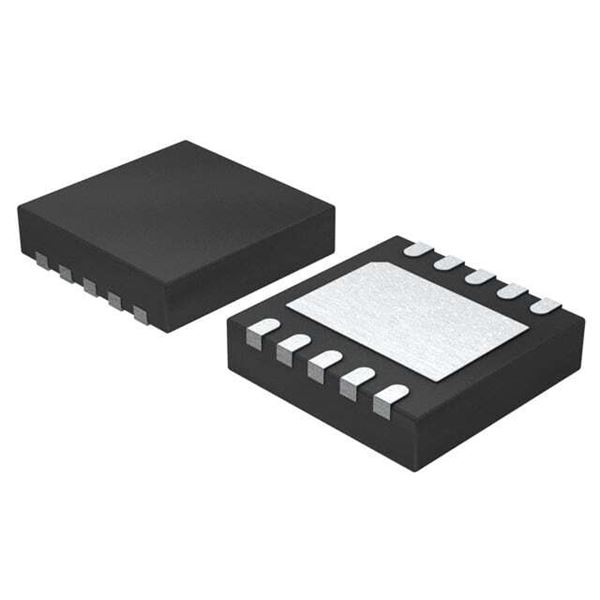

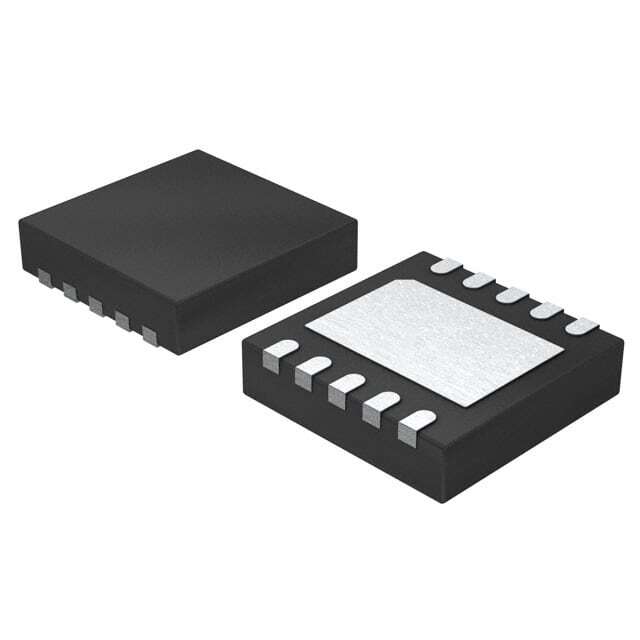

RT8055GQW

SKU: 28331

Manufacturer: Richtek Technology Corporation

Conv DC-DC 2.6V to 5.5V Synchronous Step Down Single-Out 0.8V to 5V 3A 10-Pin WDFN EP

2770 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Type	Synchronous Step Down
Output Type	Adjustable
Switching Frequency (kHz)	300 to 2000
Switching Regulator	Yes
Number of Outputs	1
Output Voltage (V)	0.8 to 5
Maximum Output Current (A)	3
Minimum Input Voltage (V)	2.6
Maximum Input Voltage (V)	5.5
Operating Supply Voltage (V)	2.6 to 5.5
Line Regulation	0.1%/V(Typ)
Load Regulation	0.4%(Typ)
Efficiency (%)	95
Maximum ESD Protection Voltage (kV)	2@HBM/0.2@MM
Operating Temperature-Min	-40
Operating Temperature-Max	85
Original Package	WDFN EP
Pin Count	10
Standard Package Method	DFN
Terminal Form	Surface Mount
Package Height	0.75(Max)
Package Length	3.05(Max)
Package Width	3.05(Max)
PCB changed	10
