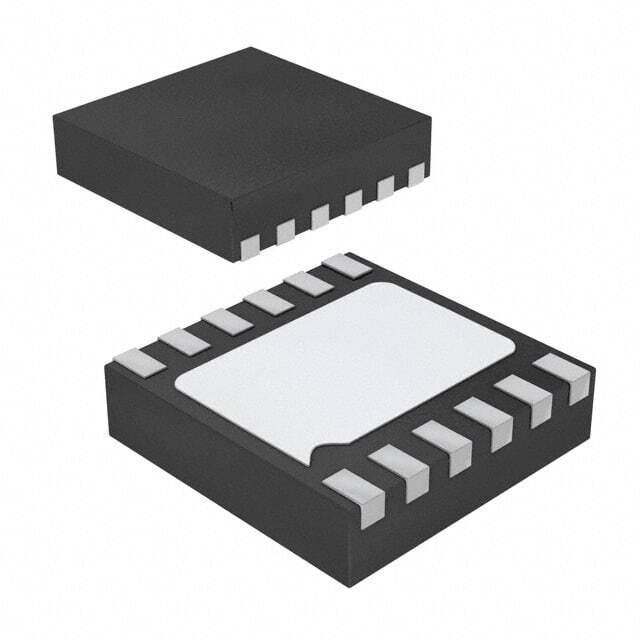

RT8020GQW

SKU: 113135

Manufacturer: Richtek Technology Corporation

Conv DC-DC 2.5V to 5.5V Synchronous Step Down Dual-Out 0.6V to 5.5V 1A 12-Pin WDFN EP

46220 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Type	Synchronous Step Down
Output Type	Adjustable
Switching Frequency (kHz)	1800
Switching Regulator	Yes
Number of Outputs	2
Output Voltage (V)	0.6 to 5.5
Maximum Output Current (A)	1
Minimum Input Voltage (V)	2.5
Maximum Input Voltage (V)	5.5
Operating Supply Voltage (V)	2.5 to 5.5
Typical Quiescent Current (uA)	50
Efficiency (%)	95
Maximum ESD Protection Voltage (kV)	2@HBM/0.2@MM
Operating Temperature-Min	-40
Operating Temperature-Max	85
Original Package	WDFN EP
Pin Count	12
Standard Package Method	DFN
Terminal Form	Surface Mount
Package Height	0.75(Max)
Package Length	3.05(Max)
Package Width	3.05(Max)
PCB changed	12
