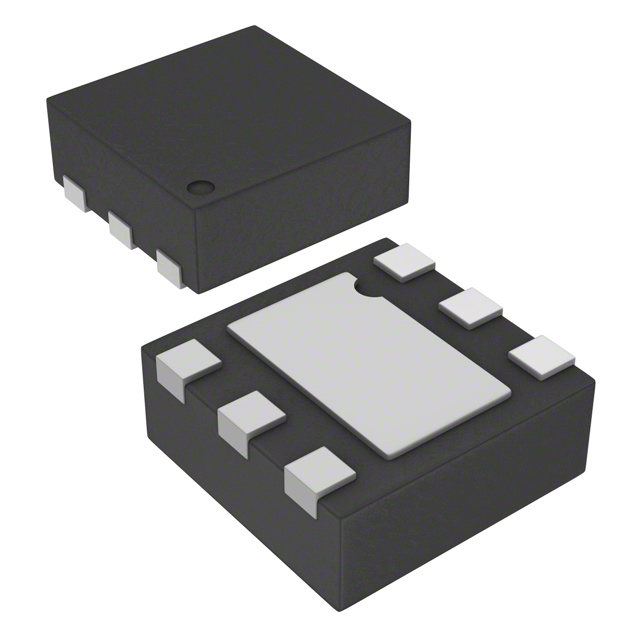

RT8010GQW

SKU: 56747

Manufacturer: Richtek Technology Corporation

Conv DC-DC 2.5V to 5.5V Synchronous Step Down Single-Out 0.6V to 5.5V 1A 6-Pin WDFN EP T/R

88860 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	Synchronous Step Down
Output Type	Adjustable
Switching Frequency (kHz)	1800
Switching Regulator	Yes
Number of Outputs	1
Output Voltage (V)	0.6 to 5.5
Maximum Output Current (A)	1
Minimum Input Voltage (V)	2.5
Maximum Input Voltage (V)	5.5
Operating Supply Voltage (V)	2.5 to 5.5
Typical Quiescent Current (uA)	50
Efficiency (%)	95
Maximum ESD Protection Voltage (kV)	2@HBM
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Original Package	WDFN EP
Pin Count	6
Standard Package Method	DFN
Terminal Form	Surface Mount
Package Height	0.75(Max)
Package Length	2.05(Max)
Package Width	2.05(Max)
PCB changed	6
