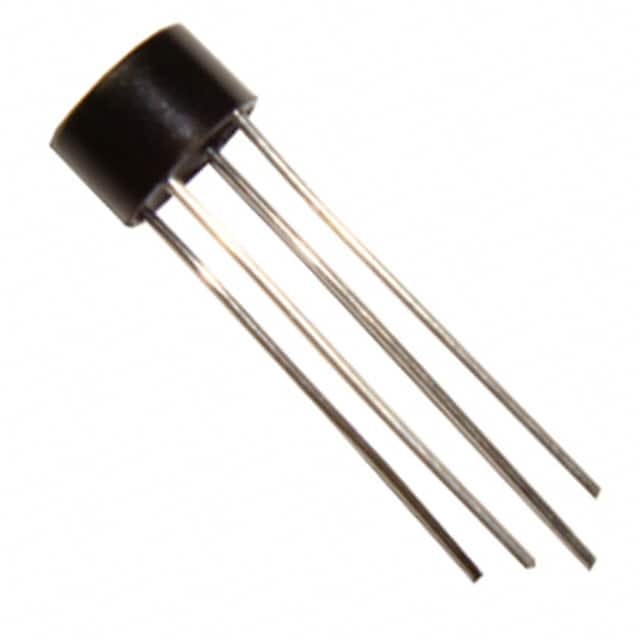

RB151

SKU: 35268

Manufacturer: Rectron

Diode Rectifier Bridge Single 50V 1.5A 4-Pin RB-15

810 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	LTB
HTS	8541.10.00.80
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Bridge Type	Single Phase
Configuration	Single
Peak Reverse Repetitive Voltage (V)	50
Peak Average Forward Current (A)	1.5
Peak RMS Reverse Voltage (V)	35
Peak Non-Repetitive Forward Surge Current (A)	40
Peak Forward Voltage (V)	1@1A
Peak Reverse Current (uA)	1
Operating Temperature-Min	-55
Operating Temperature-Max	150
Original Package	RB-15
Pin Count	4
Diameter	9.1(Max)
Terminal Form	Through Hole
Package Height	3.8(Max)
