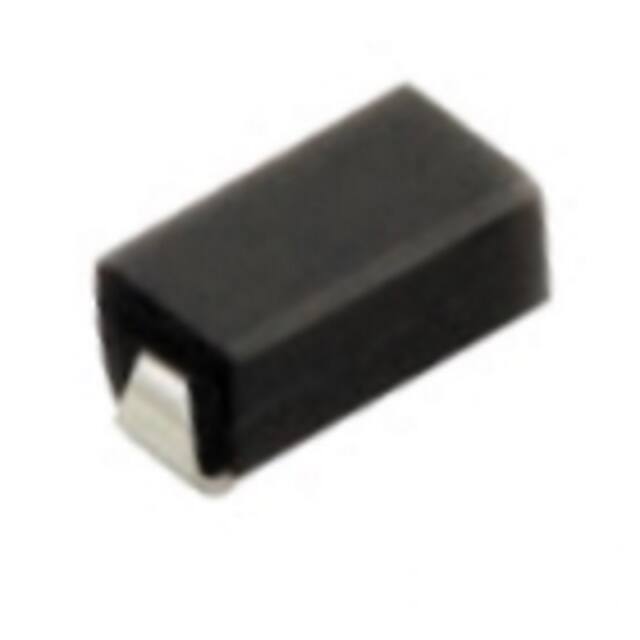

HFM105W

SKU: 132208

Manufacturer: Rectron

Rectifier Diode Switching Si 400V 1A 50ns 2-Pin SMX

3270 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8541.10.00.80
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	Switching Diode
Body Material	Si
Maximum DC Reverse Voltage (V)	400
Configuration	Single
Peak Reverse Repetitive Voltage (V)	400
Maximum Continuous Forward Current (A)	1@Ta=50C
Peak Non-Repetitive Surge Current (A)	30
Peak Forward Voltage (V)	1.3
Peak Reverse Current (uA)	5
Peak Reverse Recovery Time (ns)	50
Operating Temperature-Min	-55
Operating Temperature-Max	150
Original Package	SMX
Pin Count	2
Terminal Form	Surface Mount
Package Height	2.31(Max)
Package Length	4.57(Max)
Package Width	2.79(Max)
