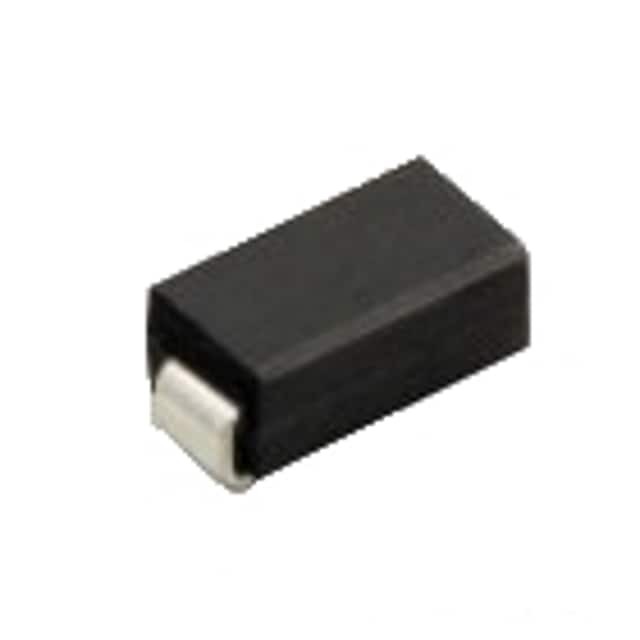

FM4007

SKU: 132110

Manufacturer: Rectron

Rectifier Diode Switching Si 1KV 1A 2500ns 2-Pin SMA

299150 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	Switching Diode
Body Material	Si
Maximum DC Reverse Voltage (V)	1000
Configuration	Single
Peak Reverse Repetitive Voltage (V)	1000
Maximum Continuous Forward Current (A)	1
Peak Non-Repetitive Surge Current (A)	30
Peak Forward Voltage (V)	1
Peak Reverse Current (uA)	0.5
Maximum Junction Ambient Thermal Resistance	80°C/W(Typ)
Peak Reverse Recovery Time (ns)	2500
Operating Temperature-Min	-55
Operating Temperature-Max	175
Maximum RMS Reverse Voltage (V)	700
Original Package	SMA
Pin Count	2
Standard Package Method	DO-214-AC
Terminal Form	Surface Mount
Package Height	2.11(Max)
Package Length	4.57(Max)
Package Width	2.79(Max)
PCB changed	2
