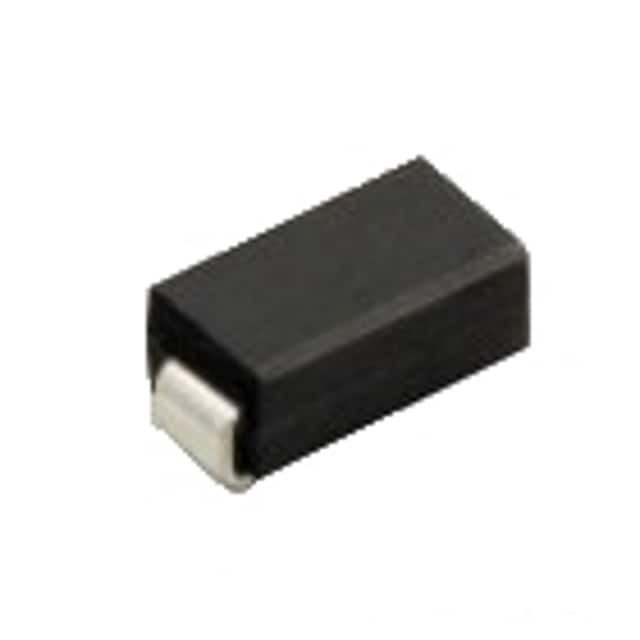

FM4002-T Rectron

FM4002-T

SKU: 32996

Manufacturer: Rectron

Rectifier Diode Switching Si 100V 1A 2500ns T/R

Request Free Samples

1760 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

ECCN (US)	EAR99
Automotive	No
PPAP	No
Type	Switching Diode
Body Material	Si
Maximum DC Reverse Voltage (V)	100
Configuration	Single
Peak Reverse Repetitive Voltage (V)	100
Maximum Continuous Forward Current (A)	1
Peak Non-Repetitive Surge Current (A)	30
Peak Forward Voltage (V)	1
Peak Reverse Current (uA)	0.5
Maximum Junction Ambient Thermal Resistance	80°C/W(Typ)
Peak Reverse Recovery Time (ns)	2500
Operating Temperature-Min	-55
Operating Temperature-Max	175
Packing Method	Tape and Reel
