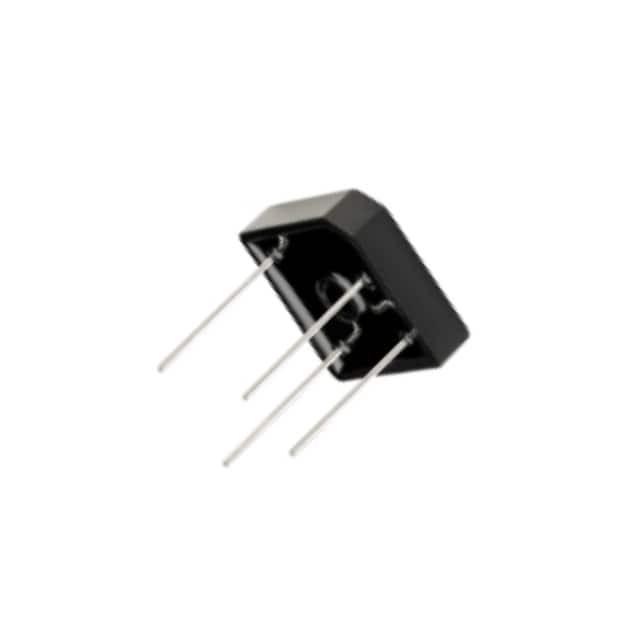

EDB104S-T

SKU: 110626

Manufacturer: Rectron

Rectifier Bridge Diode Single 200V 1A 4-Pin Case DB-S T/R

1690 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.10.00.80
Automotive	No
PPAP	No
Bridge Type	Single Phase
Diode Type	Ultra Fast Recovery Rectifier
Configuration	Single
Peak Reverse Repetitive Voltage (V)	200
Peak Average Forward Current (A)	1@Ta=55C
Peak RMS Reverse Voltage (V)	140
Peak Non-Repetitive Forward Surge Current (A)	30
Peak Forward Voltage (V)	1.05
Peak Reverse Current (uA)	5
Peak Reverse Recovery Time (ns)	50
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Original Package	Case DB-S
Pin Count	4
Standard Package Method	Case DB-S
Terminal Form	Surface Mount
Package Height	3.4(Max)
Package Length	8.8(Max)
Package Width	6.5(Max)
