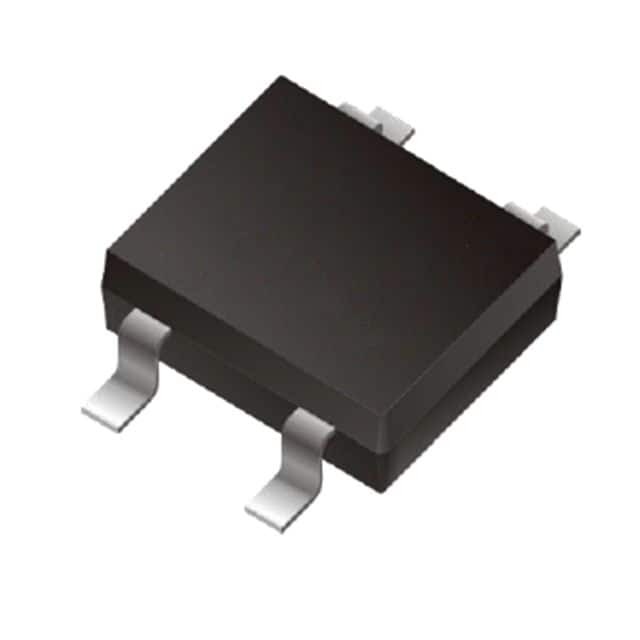

DB107S

SKU: 153003

Manufacturer: Rectron

Rectifier Bridge Diode Single 1KV 1A 4-Pin Case DB-S

66240 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8541.10.00.80
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Bridge Type	Single Phase
Configuration	Single
Peak Reverse Repetitive Voltage (V)	1000
Peak Average Forward Current (A)	1@Ta=40C
Peak RMS Reverse Voltage (V)	700
Peak Non-Repetitive Forward Surge Current (A)	30
Peak Forward Voltage (V)	1
Peak Reverse Current (uA)	1
Operating Temperature-Min	-55
Operating Temperature-Max	150
Original Package	Case DB-S
Pin Count	4
Standard Package Method	Case DB-S
Terminal Form	Surface Mount
Package Height	3.4(Max)
Package Length	8.8(Max)
Package Width	6.5(Max)
