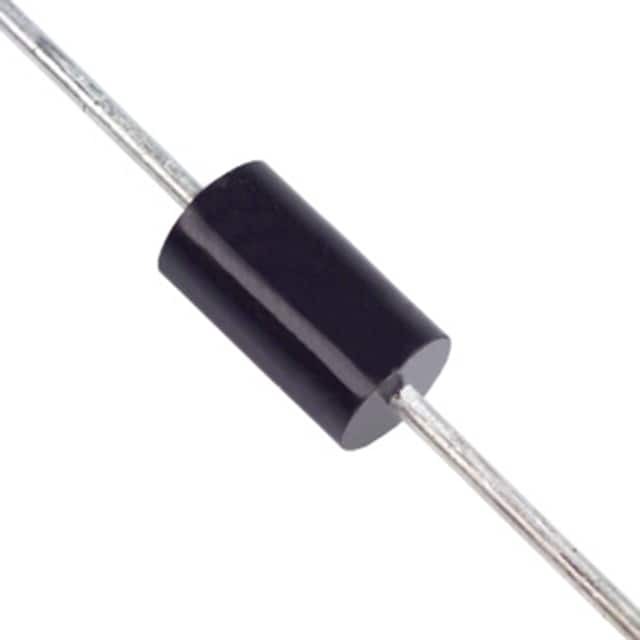

1.5KE200A-T

SKU: 6180

Manufacturer: Rectron

TVS Diode Single Uni-Dir 171V 1.5KW 2-Pin Case 1.5KE T/R

3070 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Configuration	Single
Direction Type	Uni-Directional
Number of Elements per pcs	1
Minimum Breakdown Voltage (V)	190
Maximum Clamping Voltage (V)	274
Maximum Reverse Stand-Off Voltage (V)	171
Maximum Peak Pulse Current (A)	5.5
Maximum Reverse Leakage Current (uA)	5
Test Current (mA)	1
Peak Pulse Power Dissipation (W)	1500(Min)
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Original Package	Case 1.5KE
Pin Count	2
Standard Package Method	DO-201
Diameter	5.3(Max)
Terminal Form	Through Hole
Package Length	9.5(Max)
PCB changed	2
