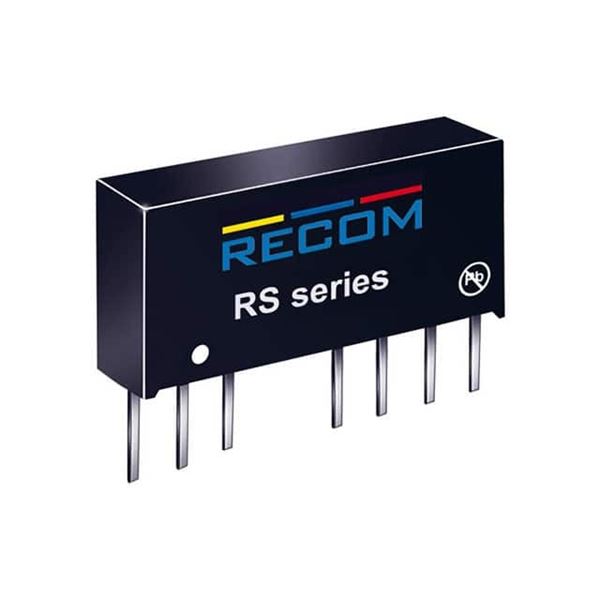

RS-4805S RECOM Power

RS-4805S

SKU: 129943

Manufacturer: RECOM Power

Module DC-DC 48VIN 1-OUT 5V 0.4A 2W 7-Pin SIP Tube

Download sample

Request Free Samples

3400 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8504.40.95.80
Automotive	No
PPAP	No
Type	Step Down
Number of Outputs	1
Isolation	Isolated
Minimum Input Voltage (V)	36
Typical Input Voltage (V)	48
Maximum Input Voltage (V)	72
Output Voltage (V)	5
Output Current (A)	0.4
Output Power (W)	2
Minimum Isolation Voltage	1000VDC
Input/Output Type	DC/DC
Switching Frequency (kHz)	300
Switching Regulator	Yes
Load Regulation	0.5%
Line Regulation	0.5%
Efficiency (%)	78(Typ)
On/Off Logic	Positive
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tube
Product Weight (g)	4.7
Output Type	Fixed
Original Package	SIP
Pin Count	7
Standard Package Method	SIP
Terminal Form	Through Hole
Package Height	11.1
Package Length	21.8
Package Width	9.2
PCB changed	7
