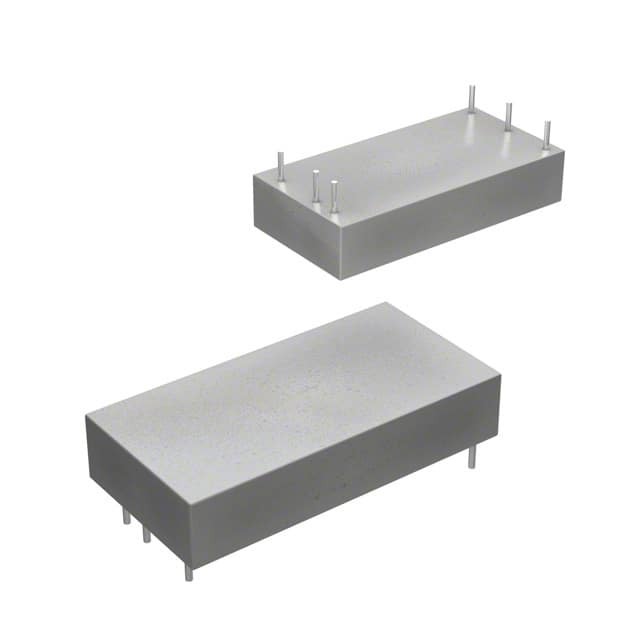

RP30-1205SF RECOM Power

RP30-1205SF

SKU: 42453

Manufacturer: RECOM Power

Module DC-DC 12VIN 1-OUT 5V 6A 30W 6-Pin Tube

Download sample

Request Free Samples

3460 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Type	Step Down
Number of Outputs	1
Isolation	Isolated
Minimum Input Voltage (V)	9
Typical Input Voltage (V)	12
Maximum Input Voltage (V)	18
Output Voltage (V)	5
Output Current (A)	6
Output Power (W)	30
Minimum Isolation Voltage	1600VDC
Input/Output Type	DC/DC
Typical Standby Current (mA)	3
Switching Frequency (kHz)	473
Switching Regulator	Yes
Load Regulation	0.5%
Line Regulation	0.2%
Efficiency (%)	87(Typ)
On/Off Logic	Positive
Operating Temperature-Min	-40
Operating Temperature-Max	97
Packing Method	Tube
Product Weight (g)	30.5
Output Type	Fixed
Pin Count	6
Terminal Form	Through Hole
Package Height	10.2
Package Length	50.8
Package Width	25.4
PCB changed	6
