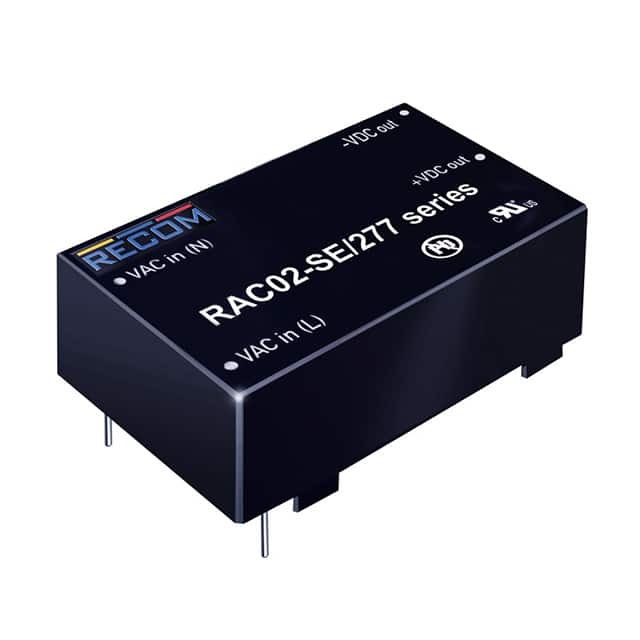

RAC02-05SE/277 RECOM Power

RAC02-05SE/277

SKU: 42381

Manufacturer: RECOM Power

AC/DC Power Supply Single-OUT 5V 0.4A 2W 4-Pin Tube

Download sample

Request Free Samples

2490 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8504.40.95.10
Automotive	No
PPAP	No
Type	Regulated
Style	Enclosed
Power Supply Color	Black
Input/Output Type	AC/DC
Number of Outputs	1
Output Type	Fixed
Output Voltage (V)	5
Output Current (A)	0.4
Output Power (W)	2
Minimum AC Input Voltage (V)	85
Maximum AC Input Voltage (V)	305
Minimum DC Input Voltage (V)	120
Maximum DC Input Voltage (V)	430
Minimum Isolation Voltage	3000VAC
Line Regulation	1.5%
Load Regulation	6%(Typ)
Maximum Input Current (A)	0.047(Typ)
Input Frequency (Hz)	47 to 440
Tolerance (%)	±6
Efficiency (%)	70(Typ)
Configurable	No
Input Connector Type	PC Pins
Output Connector Type	PC Pins
Power Indicator	No
Ripple & Noise	250mV(Max)
Medical	No
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tube
Product Weight (g)	24.5
Pin Count	4
Terminal Form	Through Hole
Package Height	17.75
Package Length	33.7
Package Width	22.2
