R114005000 Radiall

R114005000

SKU: 73286

Manufacturer: Radiall

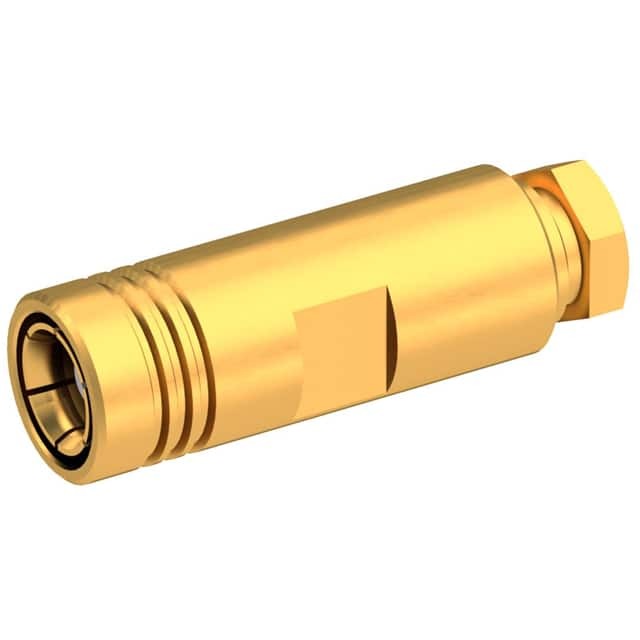

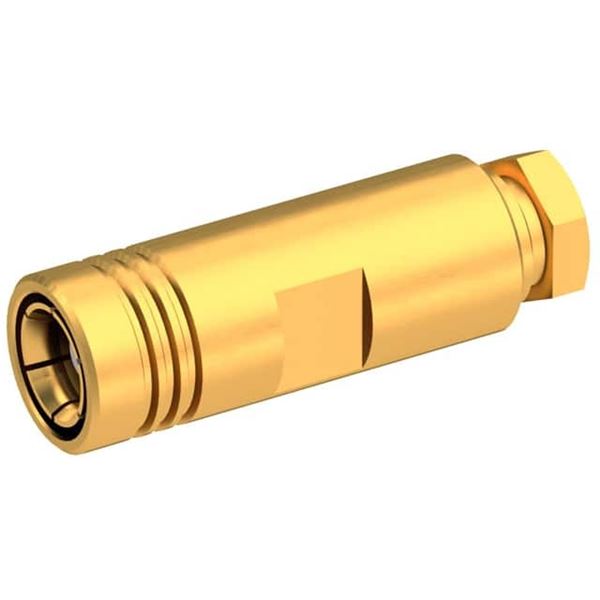

Conn SMB 0Hz to 4GHz 50Ohm Clamp ST Cable Mount PL Gold Over Nickel

Download sample

Request Free Samples

950 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	SMB
Gender	PL
Termination Method	Clamp
Body Orientation	Straight
Contact Gender	M
Contact Plating	Gold Over Nickel
Operating Frequency (Hz)	0 to 4G
Maximum Insertion Loss (dB)	0.5
Impedance (Ohm)	50
Insulation Resistance (MOhm)	1000
Mating Cycle (Cycles)	500
Polarity	Standard
Operating Temperature-Min	-65
Operating Temperature-Max	165
Product Diameter (mm)	6.4
Length (mm)	21.8
