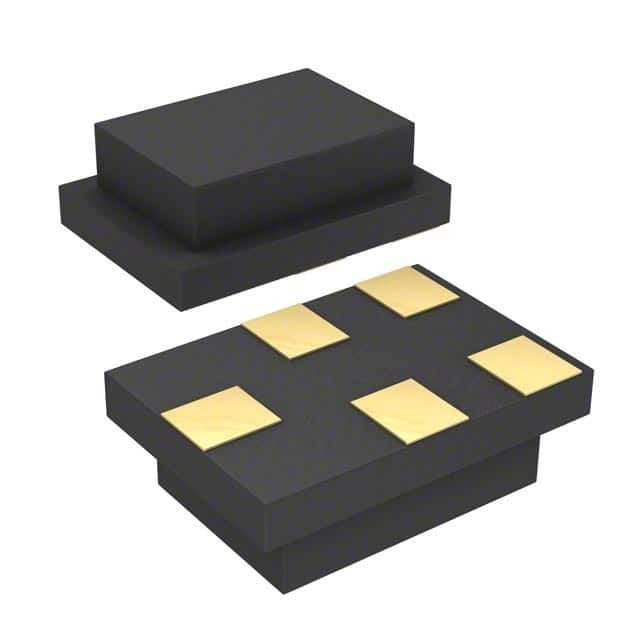

B39811B4321P810 Qualcomm® RF front-end (RFFE) filters

B39811B4321P810

SKU: 37232

Manufacturer: Qualcomm® RF front-end (RFFE) filters

SAW Filter RF 806MHz 4.2dB 100Ohm//56nH SMD 5 Pin QCS5P Automotive

Download sample

Request Free Samples

2070 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Unconfirmed
Automotive	Yes
PPAP	Unknown
Type	RF
Typical Center Frequency (Hz)	806M
Load Impedance	100Ohm//56nH
Maximum Insertion Loss (dB)	4.2
Pass Band Ripple (dB)	2.7
Terminal Form	Surface Mount
Number of Terminals	5
Terminal Pitch (mm)	0.5
Operating Temperature-Min	-40
Operating Temperature-Max	85
Package Type	QCS5P
Length (mm)	1.4
Depth (mm)	1.1
