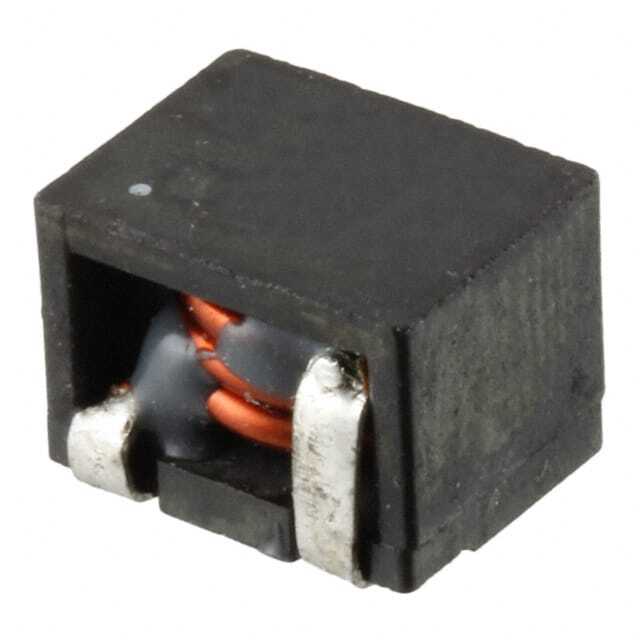

PG0702.472NLT

SKU: 23742

Manufacturer: Pulse Electronics

Inductor Power Shielded Wirewound 4.7uH/3.76uH 20% 100KHz Ferrite 8.4A 0.0053Ohm DCR Automotive T/R

3160 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8504.50.80.00
Automotive	Yes
PPAP	Unknown
Type	Power
Technology	Wirewound
Protection Style	Shielded
Core Body Material	Ferrite
Inductance (H)	4.7u(OCL)/3.76u
Inductance Decrease Percentage @ Isat (%)	20
Tolerance	20%
Inductance Test Frequency (Hz)	100K
Maximum DC Current (A)	8.4
Maximum Saturation Current (A)	8.4(Typ)
Maximum DC Resistance (Ohm)	0.0053(Typ)
Number of Terminals	3
Operating Temperature-Min	-40
Operating Temperature-Max	130
Packing Method	Tape and Reel
Length (mm)	10.8
Terminal Form	Surface Mount
Depth (mm)	9.2
