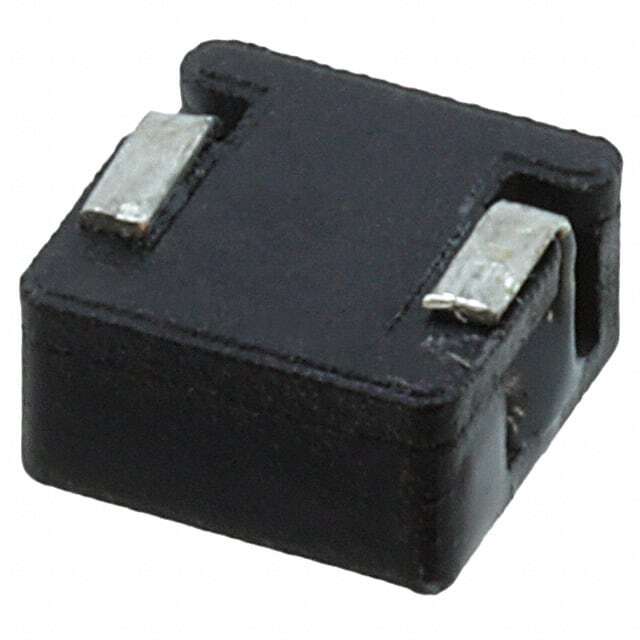

PG0083.401NLT

SKU: 45065

Manufacturer: Pulse Electronics

Inductor Power Wirewound 0.4uH/0.32uH 25% 100KHz 17.5A 0.0032Ohm DCR T/R

1990 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8504.50.40.00
Automotive	No
PPAP	No
Type	Power
Technology	Wirewound
Inductance (H)	0.4u(OCL)/0.32u
Tolerance	25%
Inductance Test Frequency (Hz)	100K
Maximum DC Current (A)	17.5
Maximum Saturation Current (A)	27
Maximum DC Resistance (Ohm)	0.0032
Number of Terminals	2
Operating Temperature-Min	-40
Operating Temperature-Max	95
Packing Method	Tape and Reel
Length (mm)	6.8
Terminal Form	Surface Mount
Depth (mm)	6.8
