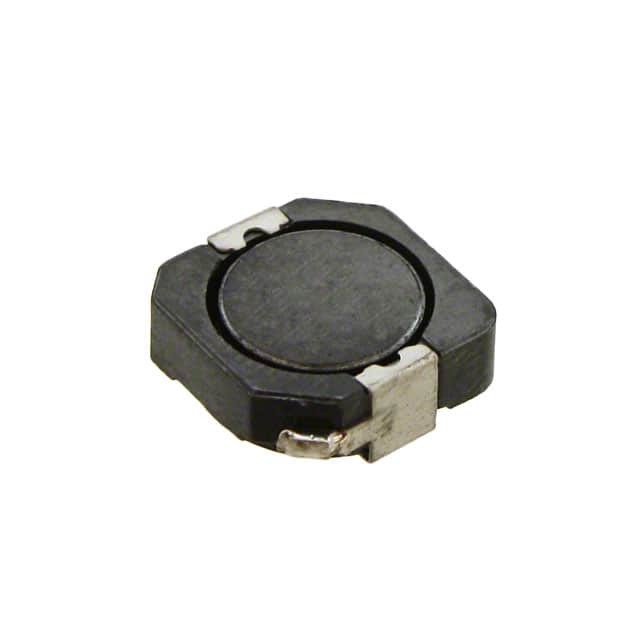

PF0560.103NLT

SKU: 84595

Manufacturer: Pulse Electronics

Inductor Power Shielded Wirewound 10uH 30% 100KHz 3.8A 0.035Ohm DCR T/R

1260 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8504.50.80.00
Automotive	No
PPAP	No
Type	Power
Technology	Wirewound
Protection Style	Shielded
Inductance (H)	10u
Tolerance	30%
Inductance Test Frequency (Hz)	100K
Maximum DC Current (A)	3.8
Maximum Saturation Current (A)	4.4
Maximum DC Resistance (Ohm)	0.035
Minimum Self Resonant Frequency (Hz)	25M
Number of Terminals	2
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Length (mm)	10.4
Terminal Form	Surface Mount
Depth (mm)	10.3
