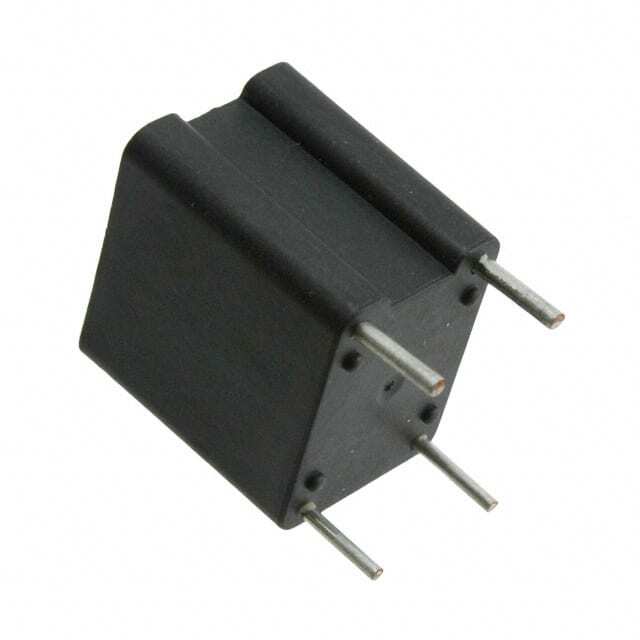

PE-67200NL

SKU: 151191

Manufacturer: Pulse Electronics

Current Transformer 1:200 3750Vrms 4.5Ohm Sec. DCR 4 Terminal PC Pin Thru-Hole

1790 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8504.32.00.00
SVHC	Yes
Automotive	No
PPAP	No
Transformer Type	Current Sense Transformer
Secondary Side Inductance (uH)	80000
Maximum DCR Secondary Side (Ohm)	4.5
High Potential	3750Vrms
Lead Style	PC Pin
Terminal Form	Through Hole
Number of Terminals	4
Operating Temperature-Min	-40
Operating Temperature-Max	130
Length (mm)	19.05
Depth (mm)	14.35
