PE-5760NL

SKU: 115682

Manufacturer: Pulse Electronics

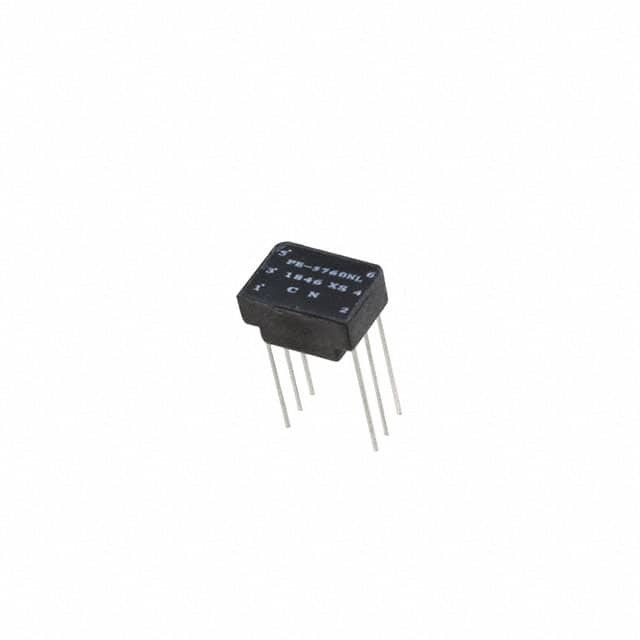

Pulse Transformer 1:1:1 500Vrms 3.9Ohm Prim. DCR 3.9Ohm Sec. DCR 70pF 6 Terminal PC Pin Thru-Hole

2150 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Transformer Type	General Purpose Transformer
Maximum Interwinding Capacitance (pF)	70
Primary Side Inductance (uH)	5000
Maximum Primary Leakage Inductance (uH)	1.3
Maximum Secondary Leakage Inductance (uH)	1.3
Maximum DCR Primary Side (Ohm)	3.9
Maximum DCR Secondary Side (Ohm)	3.9
Tertiary DC Resistance (Ohm)	3.9
High Potential	500Vrms
Maximum Rise Time (ns)	10.5
Primary ET-Constant (Vus)	25
Lead Style	PC Pin
Terminal Form	Through Hole
Number of Terminals	6
Operating Temperature-Min	0
Operating Temperature-Max	70
Package Type	DIP
Packing Method	Tube
Product Weight (g)	1.3
Length (mm)	8.89
Depth (mm)	12.7
