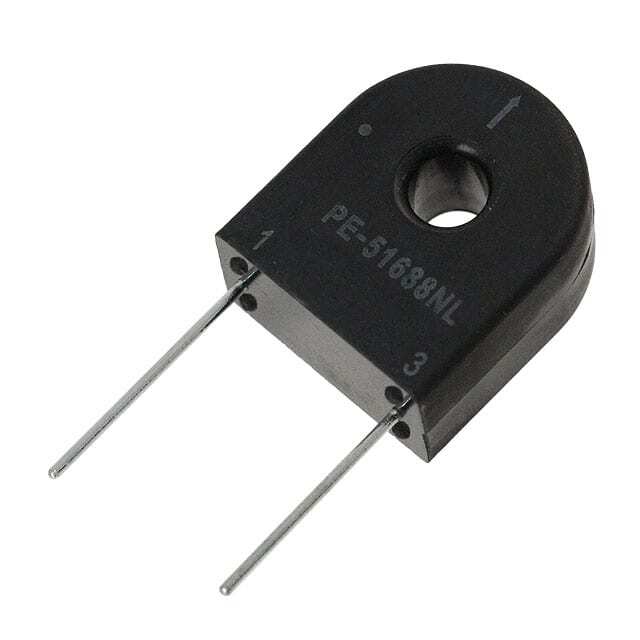

PE-51688NL

SKU: 87369

Manufacturer: Pulse Electronics

Current Transformer 1:200 3750Vrms 200Ohm Prim. DCR 4.5Ohm Sec. DCR 20000mA Prim. 2 Terminal PC Pin Thru-Hole

2090 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8504.50.80.00
SVHC	Yes
Automotive	No
PPAP	No
Transformer Type	Current Sense Transformer
Primary Side Current (mA)	20000
Secondary Side Current (mA)	20000
Secondary Side Inductance (uH)	80000(Min)
Maximum DCR Primary Side (Ohm)	200
Maximum DCR Secondary Side (Ohm)	4.5
High Potential	3750Vrms
Lead Style	PC Pin
Terminal Form	Through Hole
Number of Terminals	2
Operating Temperature-Min	-40
Operating Temperature-Max	125
Package Type	DIP
Packing Method	Tray
Length (mm)	17.01
Depth (mm)	9.9
