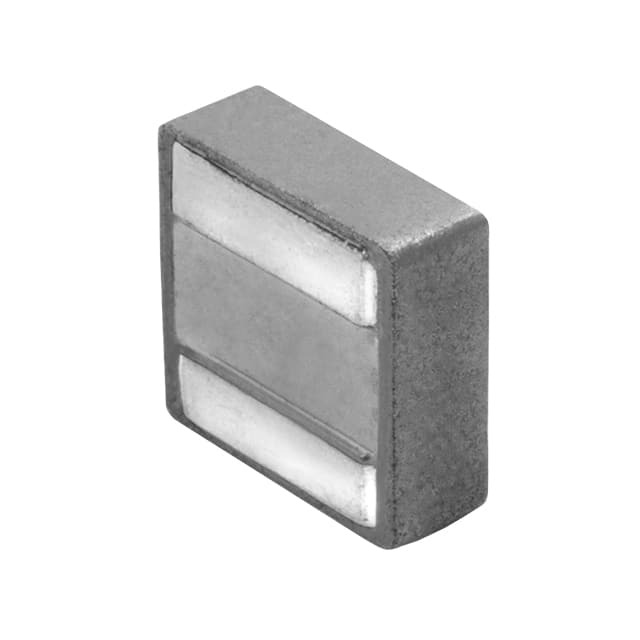

PA5003.332NLT

SKU: 87363

Manufacturer: Pulse Electronics

Inductor Power Shielded/Molded Wirewound 3.3uH 20% 100KHz 8.1A 0.0231Ohm DCR T/R

2650 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Type	Power
Technology	Wirewound
Protection Style	Shielded/Molded
Inductance (H)	3.3u
Inductance Decrease Percentage @ Isat (%)	40
Tolerance	20%
Inductance Test Frequency (Hz)	100K
Maximum DC Current (A)	8.1
Maximum Saturation Current (A)	8.7
Maximum DC Resistance (Ohm)	0.0231
Number of Terminals	2
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Length (mm)	5.7
Terminal Form	Surface Mount
Depth (mm)	5.5
