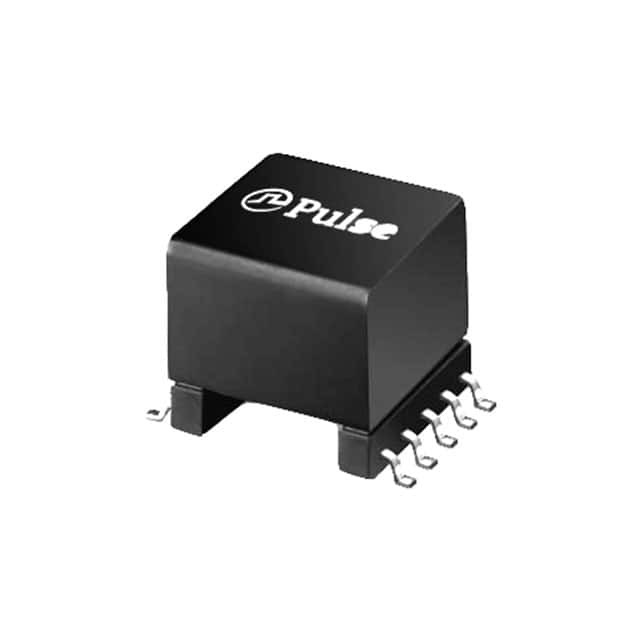

PA3855.005NLT

SKU: 126985

Manufacturer: Pulse Electronics

Switching Transformer 0.0294Ohm/0.168Ohm Prim. DCR 0.126Ohm Sec. DCR 70W 10 Terminal Gull Wing SMD Automotive

2390 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8504.31.40.65
Automotive	Yes
PPAP	Unknown
Transformer Type	Flyback Transformer
Maximum Input Voltage	57V
Maximum Output Voltage	5V/5V
Maximum DCR Primary Side (Ohm)	0.0294/0.168
Maximum DCR Secondary Side (Ohm)	0.126
Maximum Operating Frequency (kHz)	200
Power Rating	70W
Lead Style	Gull Wing
Terminal Form	Surface Mount
Number of Terminals	10
Operating Temperature-Min	-40
Operating Temperature-Max	130
Package Type	EP13
Packing Method	Tape and Reel
Length (mm)	14.5
Depth (mm)	17.65
