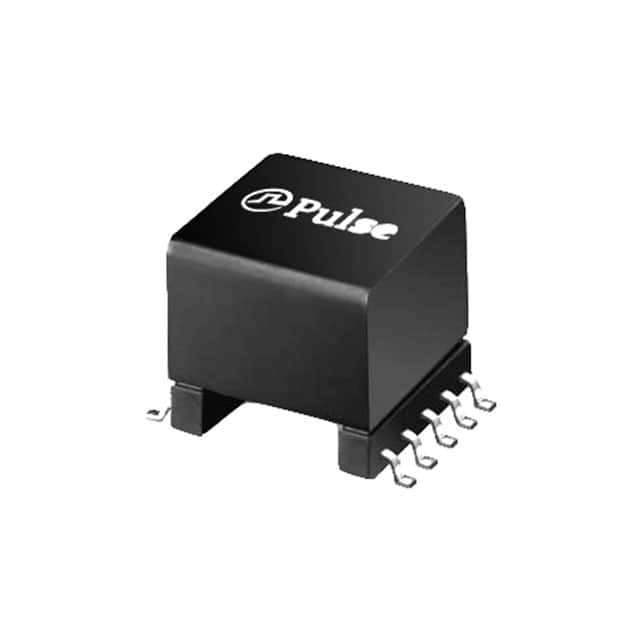

PA3855.001NLT

SKU: 49344

Manufacturer: Pulse Electronics

Switching Transformer 0.062Ohm/0.12Ohm Prim. DCR 0.0065Ohm Sec. DCR 70W 10 Terminal Gull Wing SMD Automotive

2400 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	Yes
PPAP	Unknown
Transformer Type	Flyback Transformer
Maximum Input Voltage	33V to 57V/10V
Maximum Output Voltage	3.3V/3.3V
Maximum DCR Primary Side (Ohm)	0.062/0.12
Maximum DCR Secondary Side (Ohm)	0.0065
Maximum Operating Frequency (kHz)	200
Power Rating	70W
Lead Style	Gull Wing
Terminal Form	Surface Mount
Number of Terminals	10
Operating Temperature-Min	-40
Operating Temperature-Max	130
Package Type	EP13
Packing Method	Tape and Reel
Length (mm)	14.5
Depth (mm)	17.65
