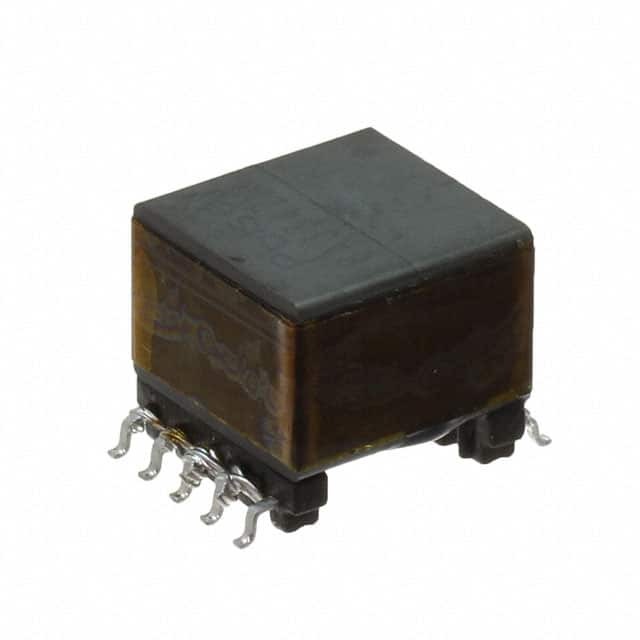

PA3342NL

SKU: 98639

Manufacturer: Pulse Electronics

Switching Transformer 8:2:1:2.5 0.3Ohm/0.12Ohm Prim. DCR 0.04Ohm/0.027Ohm Sec. DCR 10 Terminal Gull Wing SMD

1920 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8504.50.40.00
Automotive	No
PPAP	No
Transformer Type	High Frequency Wire Wound Transformer
Maximum Input Voltage	57V
Maximum Output Voltage	5V/12V
Maximum DCR Primary Side (Ohm)	0.3/0.12
Maximum DCR Secondary Side (Ohm)	0.04/0.027
Maximum Operating Frequency (kHz)	400
Lead Style	Gull Wing
Terminal Form	Surface Mount
Number of Terminals	10
Operating Temperature-Min	-40
Operating Temperature-Max	130
Package Type	DIP
Length (mm)	14
Depth (mm)	17.65
