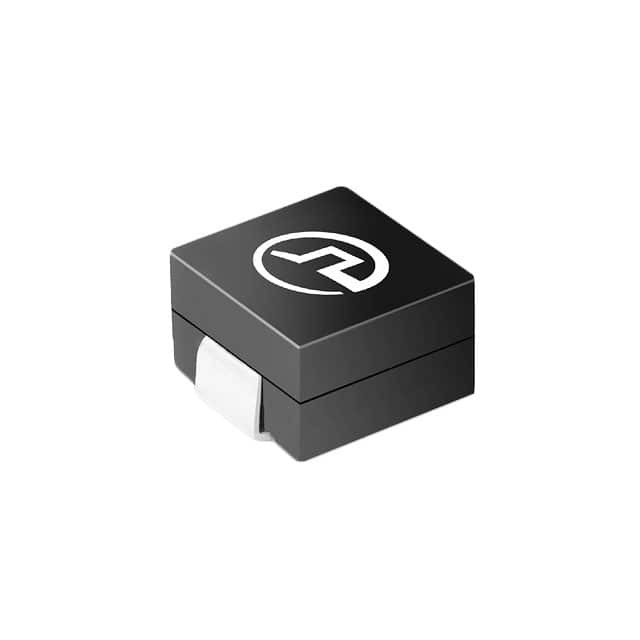

PA2891.211HLT

SKU: 80261

Manufacturer: Pulse Electronics

Inductor Power Bead Wirewound 0.21uH 10% 100KHz 71A 0.00022Ohm DCR 5050 T/R

1420 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8504.50.40.00
Automotive	No
PPAP	No
Type	Power Bead
Technology	Wirewound
Inductance (H)	0.21u
Tolerance	10%
Inductance Test Frequency (Hz)	100K
Maximum DC Current (A)	71
Maximum Saturation Current (A)	85
Maximum DC Resistance (Ohm)	0.00022(Typ)
Number of Terminals	2
Case Size	5050
Operating Temperature-Min	-40
Operating Temperature-Max	130
Packing Method	Tape and Reel
Length (mm)	13.7
Terminal Form	Surface Mount
Depth (mm)	12.95
