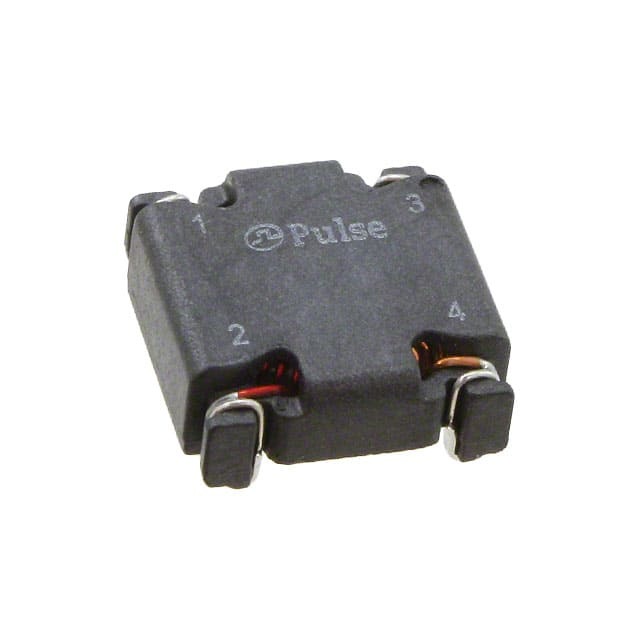

PA2748NL Pulse Electronics

PA2748NL

SKU: 141248

Manufacturer: Pulse Electronics

Common Mode Chokes Dual 1125uH 3.2kOhm 1.8A 0.055Ohm DCR SMD

Download sample

Request Free Samples

3790 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8504.50.80.00
Automotive	No
PPAP	No
Type	Power Line
Configuration	Dual
Number of Lines	2
Inductance (H)	1125u
Leakage Inductance (H)	3u(Min)
Impedance (Ohm)	3.2k@4MHz
Maximum DC Current (A)	1.8
Maximum DC Resistance (Ohm)	0.055
Withstand Voltage	1.5kVrms
Terminal Form	Surface Mount
Operating Temperature-Min	-40
Operating Temperature-Max	125
Length (mm)	12.7
Depth (mm)	13.2
